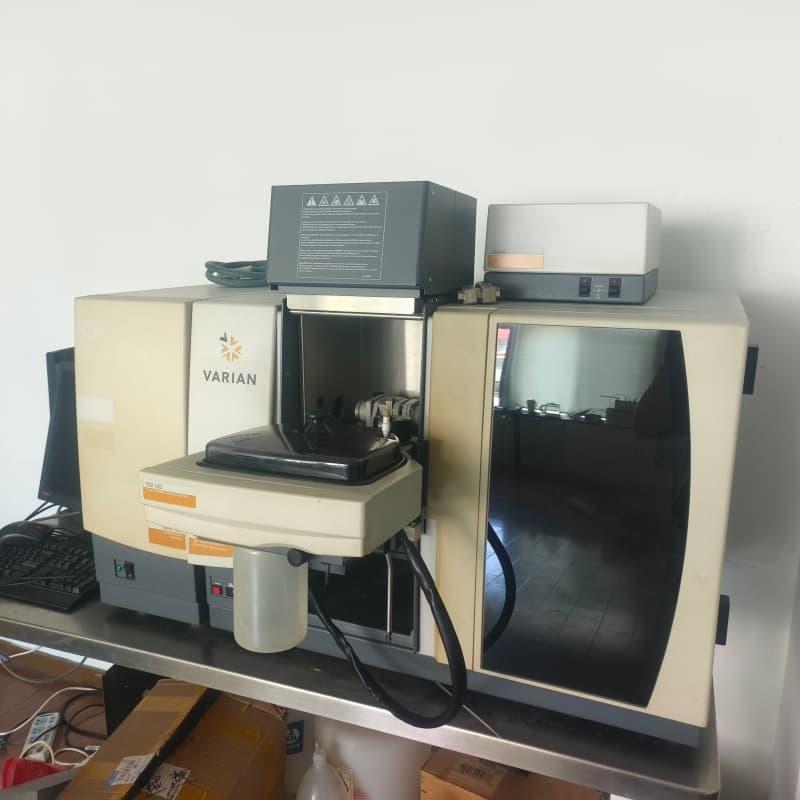

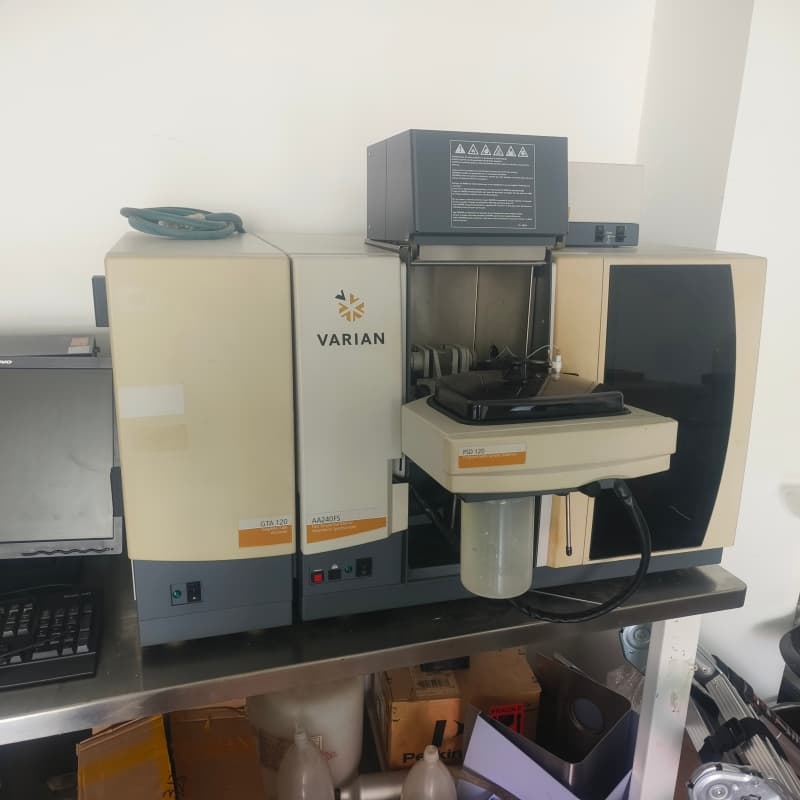

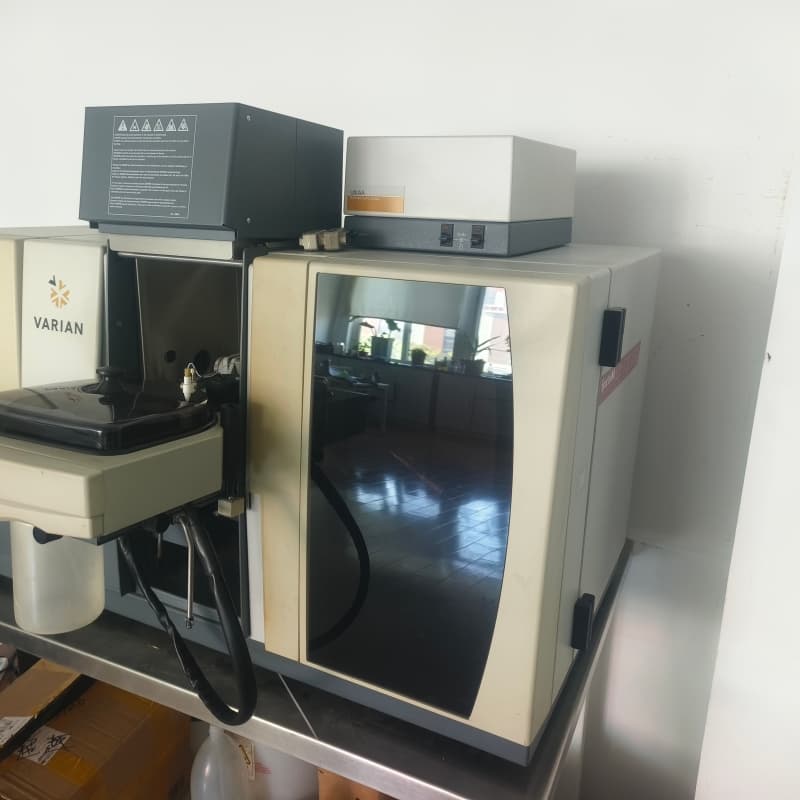

Agilent Varian 240 AAS Atomic Absorption Spectrophotometer

The Varian AA 240 Series Atomic Absorption Spectrophotometer (AAS), now supported under the Agilent Technologies portfolio, stands as a highly reliable and versatile benchmark in the field of atomic spectroscopy, purpose-built to deliver precise, accurate, and efficient quantitative analysis of over 60 metallic and metalloid elements in various liquid sample matrices. Renowned for its robust engineering and user-centric design, the AA 240 series seamlessly bridges the gap between routine quality control and complex trace analysis, offering multiple configurations including the standard Flame model (AA 240), the high-throughput Fast Sequential Flame model (AA 240FS), the ultra-trace Graphite Furnace model (AA 240Z with Zeeman background correction), and the combined Duo system integrating both flame and furnace atomization. At the heart of the instrument lies a computer-controlled, true double-beam optical system combined with a high-quality Czerny-Turner monochromator featuring an 1800 lines/mm holographic grating. This sophisticated optical architecture effectively compensates for light source fluctuations and electronic drift by continuously comparing the sample beam against a reference beam, ensuring exceptional long-term stability, high signal-to-noise ratio, and reproducible results even during extended batch runs. The monochromator covers a broad wavelength range from 185 nm to 900 nm with an accuracy of ±0.25 nm and offers automatically selectable spectral bandwidths (slits) of 0.2, 0.5, 1.0 nm, and others, allowing users to optimize resolution and sensitivity for specific elemental lines. The optical path is fully sealed and protected by quartz-coated mirrors, with an optional air purge function, making the system highly resistant to dust and corrosive vapors often present in harsh laboratory environments such as mining, metallurgy, or acid digestion fume hoods. A fixed 4-lamp turret with a rotating mirror allows for rapid, automatic lamp selection and features a "next lamp warm-up" function, which significantly reduces downtime when switching between elements in multi-element analysis routines.

The true versatility of the Varian AA 240 series is showcased in its tailored atomization technologies and intelligent workflow features that maximize productivity while minimizing operational costs. The standard AA 240 and AA 240FS models are equipped with the advanced Mark 7 Flame Atomization system, which includes a chemically resistant, impact-resistant plastic spray chamber and a precise, adjustable nebulizer, paired with a durable Incoloy alloy burner head that resists corrosion, clogging, and carbon buildup, even when analyzing high-salt matrices or strongly acidic samples. A standout innovation in the AA 240FS (Fast Sequential) model is its patented ability to perform multi-element analysis from a single sample aspiration. Unlike conventional flame AAS where the instrument must be re-optimized and the sample re-aspirated for each element, the 240FS rapidly sequences through the desired wavelength list, optimizing flame conditions (via patented hammer gas control) and taking readings for all target elements in one go. This can reduce analysis time by up to 50%, drastically cut sample and gas (acetylene/air or N2O) consumption, and improve precision by applying real-time internal standard corrections. For trace and ultra-trace analysis down to the parts-per-billion (ppb) or parts-per-trillion (ppt) level, the AA 240Z Graphite Furnace model employs a GTA 120 Zeeman furnace atomizer. Utilizing AC-modulated Zeeman-effect background correction, it provides superior correction for high background absorbance and complex matrix interferences that would overwhelm standard deuterium background correction systems. The graphite tube temperature is precisely controlled with ramp-and-hold programming, ensuring complete drying, ashing, and atomization of microliter-volume samples. Furthermore, the platform is highly expandable; the integration of a VGA 77 continuous-flow hydride generator allows for the highly sensitive determination of hydride-forming elements (like As, Se, Hg, Sb) and mercury, while the optional SPS 4 autosampler can handle up

to 360 samples for unattended overnight operation. The entire system is driven by the intuitive SpectrAA software, which utilizes a familiar spreadsheet-style interface, enabling multitasking (e.g., editing reports while a sequence is running), comprehensive method development wizards, and built-in diagnostic tools for rapid troubleshooting and compliance with GLP/GMP/21 CFR Part 11 requirements.

In practical laboratory applications, the Varian AA 240 series is a workhorse instrument found in environmental testing facilities, food safety and agriculture laboratories, pharmaceutical quality control departments, clinical research settings, and geological/mining operations worldwide. It is routinely used for quantifying heavy metals like lead (Pb), cadmium (Cd), arsenic (As), chromium (Cr), and mercury (Hg) in drinking water, wastewater, soils, and sediments in full compliance with EPA, ASTM, and ISO standard methods. In the food and agriculture industry, it ensures product safety by testing for toxic metal contaminants in oils, grains, vegetables, and beverages, as well as analyzing essential micronutrients like iron, zinc, copper, and manganese in fertilizers and animal feeds. Pharmaceutical manufacturers rely on the AA 240Z and Duo models to screen for residual catalyst metals (e.g., Pd, Pt, Ni) in Active Pharmaceutical Ingredients (APIs) as per ICH Q3D guidelines and USP <232>/<233> monographs. Clinical and toxicological labs utilize the high sensitivity of the graphite furnace system to measure trace elements in blood, serum, and urine for diagnostic and occupational health monitoring. For laboratories looking into the secondary market, a refurbished or used Varian AA 240 represents an outstanding return on investment, offering near-original performance and durability at a fraction of the cost of a new instrument. The Varian/Agilent AA 240 series is famously rugged, with a long operational lifespan if maintained correctly. When evaluating a pre-owned unit, buyers should prioritize instruments that come with a full performance validation report, checking critical metrics such as wavelength accuracy (using hollow cathode lamps or didymium filter), photometric accuracy (using known standards like copper or potassium dichromate), and characteristic concentration/detection limits. It is also vital to inspect the condition of consumables and wear items: the nebulizer (ensure it is not clogged or corroded), the spray chamber, the burner head (check for salt buildup or warping), the graphite tubes/furnace contacts (if applicable), and the hollow cathode lamps (checking usage hours). Verifying that the deuterium/halogen and background correction lamps are functional and that the SpectrAA software is licensed and compatible with a maintainable PC (often Windows XP or 7 based) is also key. A properly serviced and calibrated used Varian AA 240 retains its core analytical strengths: the drift-free double-beam optics, the rugged Mark 7 flame system or precise Zeeman GFAAS, the rapid multi-element FS capability, and the overall ease of use. It remains a highly capable, cost-effective, and trusted solution for any laboratory requiring dependable, high-quality elemental analysis data without the premium price tag of the latest instrumentation, continuing to serve as a cornerstone of inorganic quantitative analysis globally.
