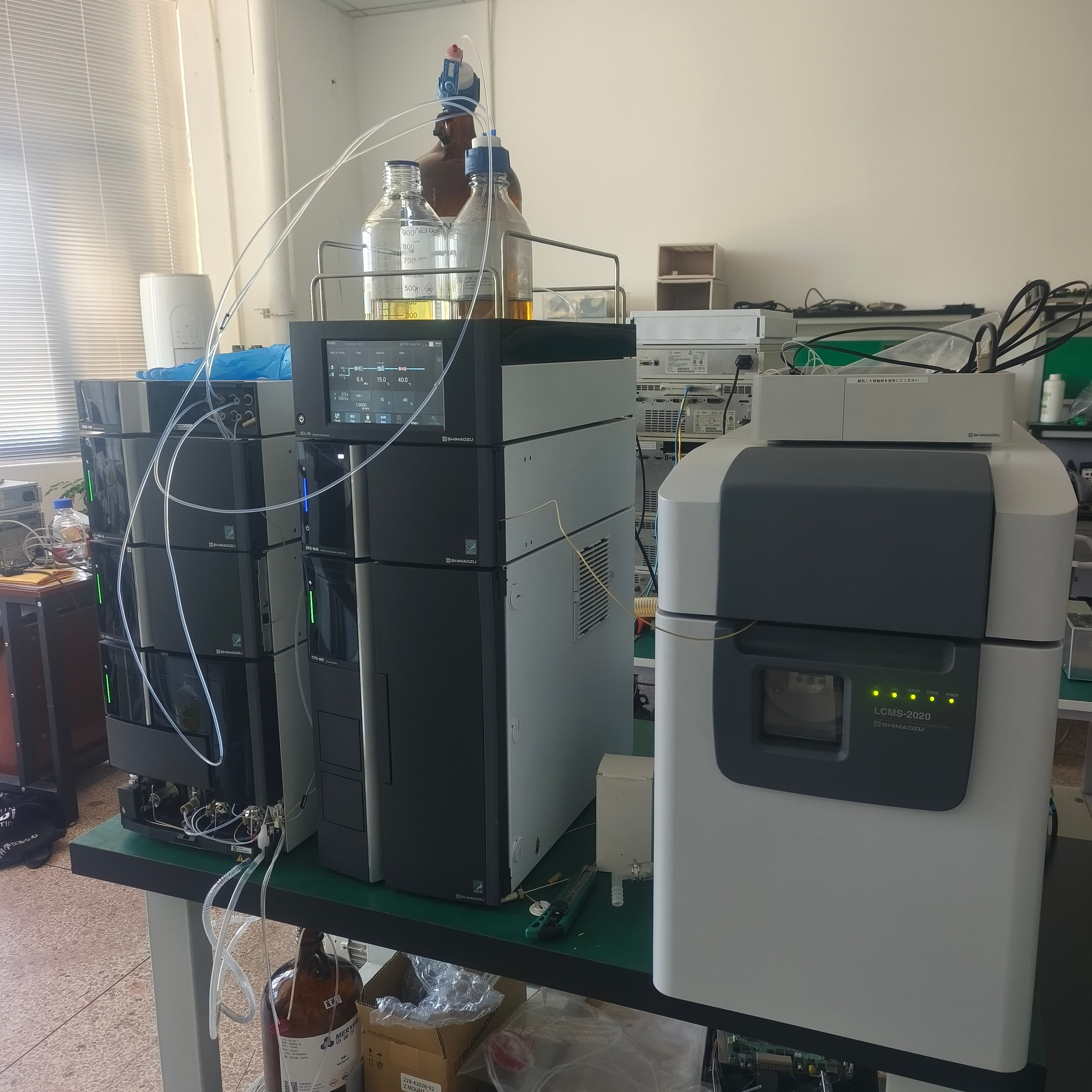

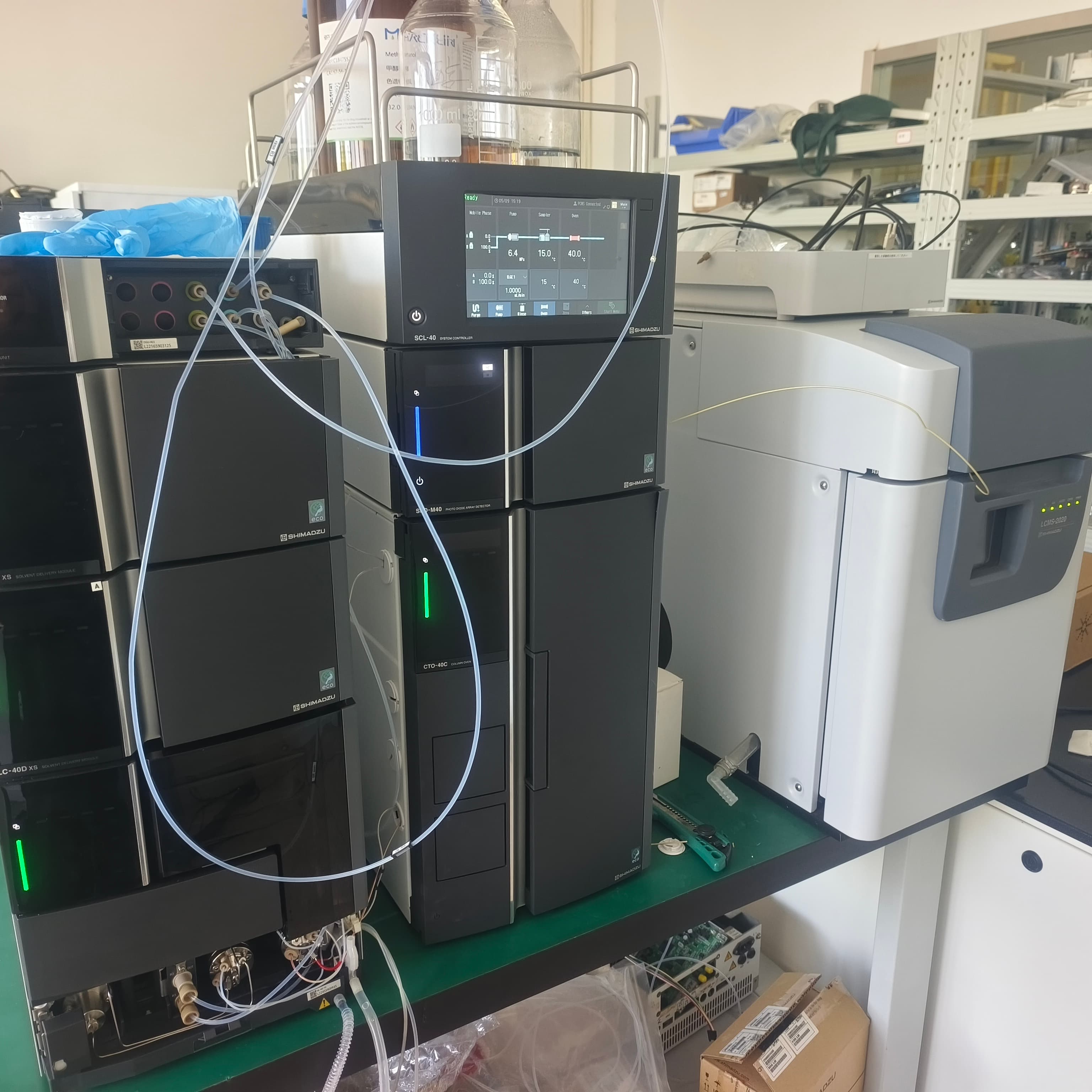

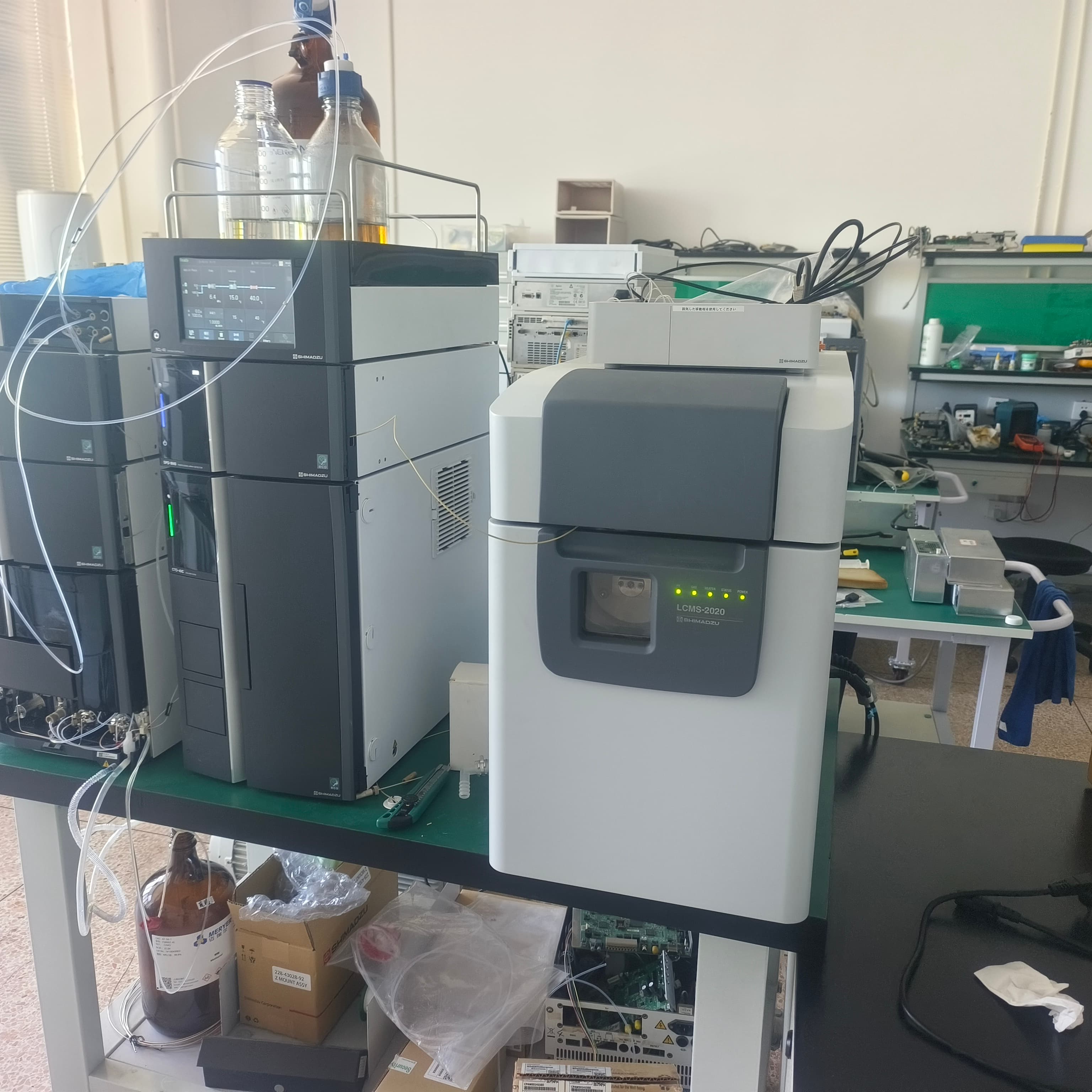

Shimadzu LCMS-2030 Single Quad LCMS

The Shimadzu LCMS-2030 Single Quadrupole Liquid Chromatograph-Mass Spectrometer is a highly integrated and efficient analytical platform designed to deliver precise qualitative confirmation and quantitative analysis for a wide array of small to medium-sized molecules. It is important to clarify that while "LCMS-2030" specifically refers to the mass spectrometer unit, in common laboratory vernacular, this designation often implies a complete system typically paired with Shimadzu’s i-Series LC-2030 liquid chromatography module (such as the Prominence-i or Nexera-i), creating a seamless, space-saving "all-in-one" or tightly coupled LC-MS workflow. The core strength of this single quadrupole system lies in its ability to combine the high-resolution separation power of HPLC/UHPLC with the sensitive detection and molecular weight confirmation capabilities of mass spectrometry. The mass spectrometer typically employs an ultra-compact design that can be directly docked onto the LC unit, functioning almost like a dedicated detector. It is equipped with a highly efficient ionization source, commonly supporting Electrospray Ionization (ESI) and often Atmospheric Pressure Chemical Ionization (APCI), with some configurations offering a dual-ion source (DUIS) that allows for rapid switching or simultaneous use without hardware changes. This flexibility is crucial for analyzing compounds with varying polarities and thermal stabilities. The mass analyzer is a robust quadrupole capable of a wide mass range (typically m/z 1.5 to 1090 or 2000), with a fast scan speed (up to 15,000 u/sec or more) that perfectly matches the narrow peak widths generated by modern rapid LC gradients. A key operational advantage is the system's quick startup time; it can often reach analysis-ready vacuum status in approximately 6 minutes after power-on, and features user-friendly maintenance designs such as tool-free desolvation line (DL) replacement without breaking the vacuum, significantly maximizing instrument uptime and laboratory throughput.

In terms of performance and software integration, the Shimadzu LCMS-2030 system is engineered for exceptional sensitivity, stability, and ease of use, making it a staple in pharmaceutical, food safety, environmental, and chemical research laboratories. The ion optics and detector (typically a high-gain secondary electron multiplier) are optimized to achieve low detection limits, with typical sensitivity metrics showing excellent S/N ratios for standard compounds like reserpine (e.g., 10 pg S/N ≥ 100 or 30 pg S/N ≥ 30 in ESI+ SIM mode). The system operates under the unified control of Shimadzu’s LabSolutions or the more recent LabSolutions DX software, which provides an intuitive interface for method development, data acquisition, and processing. This software suite includes powerful tools such as automatic tuning and calibration, post-run analysis wizards, and comprehensive quantitative analysis modules supporting internal/external standards and multi-point calibration curves. For regulatory-compliant environments (GLP/GMP), the software offers 21 CFR Part 11 features including audit trails, electronic signatures, and robust user management. The LC front-end (based on the LC-2030 series) contributes to the system's reliability with features like a low-pulsation dual-plunger pump, a high-precision autosampler (with optional sample cooling), and a forced-air circulation column oven, all of which ensure excellent retention time and peak area reproducibility—critical factors for reliable MS detection and quantification. The optional integration of a diode array detector (PDA) in the LC-2030C 3D model allows for simultaneous acquisition of UV/Vis spectra and MS data, providing an extra layer of compound confirmation and purity assessment. Furthermore, the system supports various flow rates and is compatible with both conventional HPLC columns and smaller particle UHPLC columns, offering flexibility in method transfer and optimization.

For laboratories considering a pre-owned or refurbished Shimadzu LCMS-2030 LC-MS system, this platform represents a highly cost-effective entry into reliable LC-MS analysis or an economical expansion of existing capabilities. The Shimadzu i-Series and its associated mass spectrometers are renowned for their mechanical durability and long-term stability. When evaluating a used unit, particular attention should be paid to the condition of the ion source components (probe, desolvation line, and heater block), as these are subject to wear and potential contamination from non-volatile sample matrices; checking the recent tuning report for proper sensitivity and mass accuracy is essential. The status of the turbo molecular pump (ensuring it reaches and holds high vacuum quickly and quietly) and the electron multiplier (checking the voltage vs. counts response) are also critical indicators of the MS health. On the LC side, verifying the pump seal life, autosampler injection precision (RSD), and column oven temperature accuracy ensures the front-end delivers consistent, high-quality separations. A well-maintained LCMS-2030 system retains its core analytical virtues: rapid readiness, straightforward operation, dependable quantitative performance, and the trusted Shimadzu build quality. It continues to serve effectively in routine QC environments for tasks such as impurity profiling in pharmaceuticals, pesticide residue screening in food and water, and general unknown identification via library searches (NIST, Wiley, or Shimadzu's own formula predictor). Whether as a primary workhorse for targeted analysis or a supplementary tool for method development and confirmation, a refurbished Shimadzu LCMS-2030 offers substantial analytical power and reliability at a fraction of the cost of newer high-resolution or triple quadrupole systems, making it a pragmatic choice for budget-conscious labs requiring proven LC-MS functionality.
