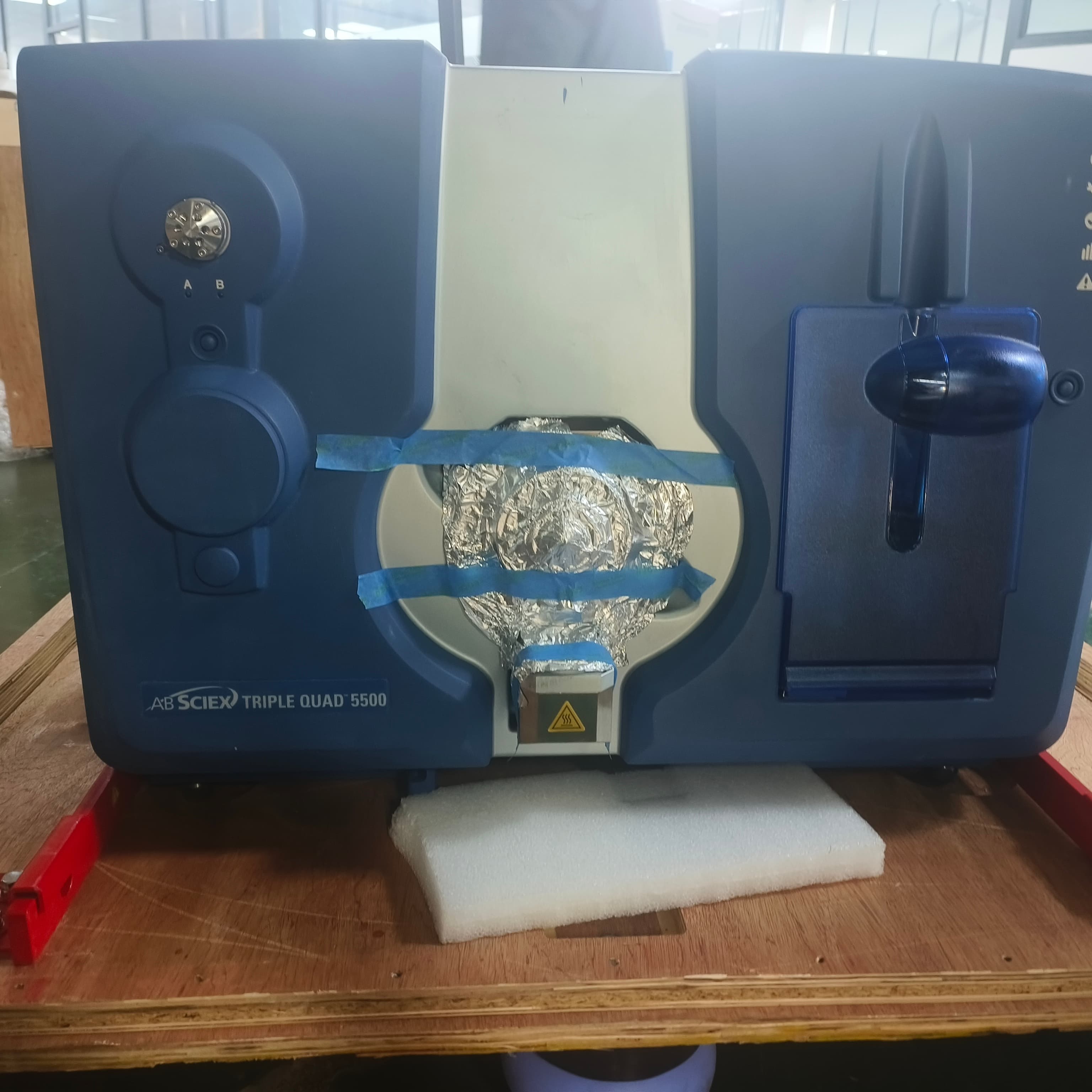

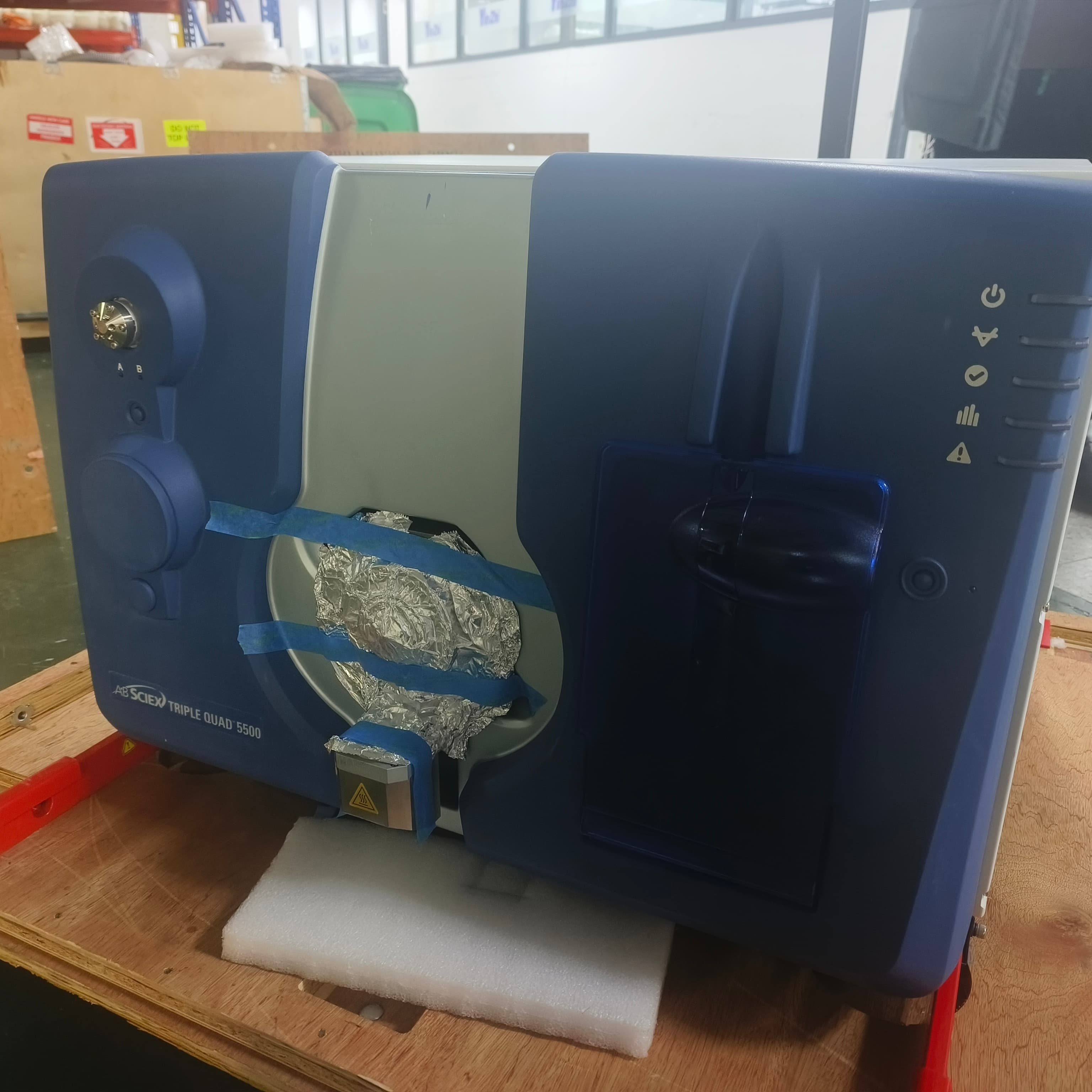

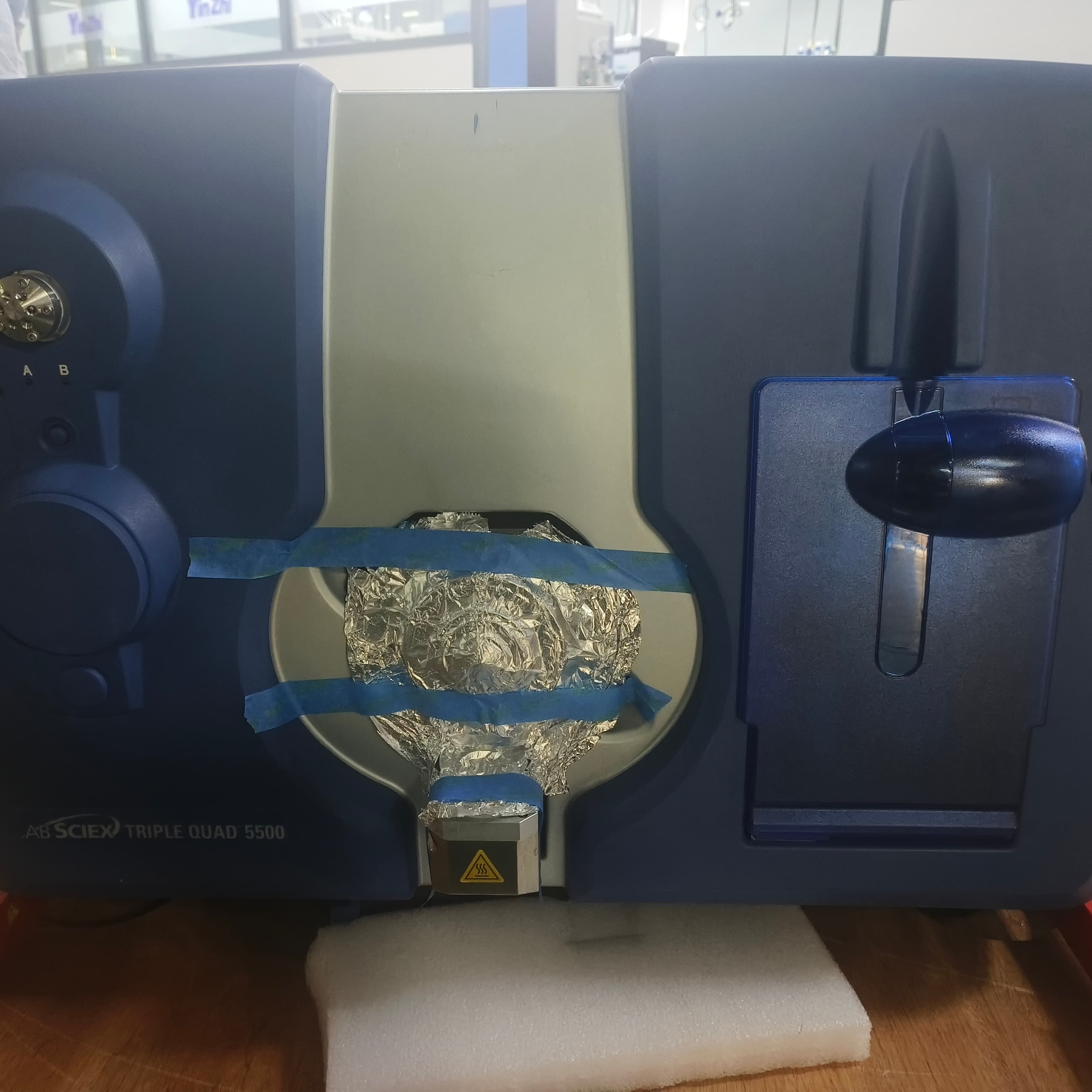

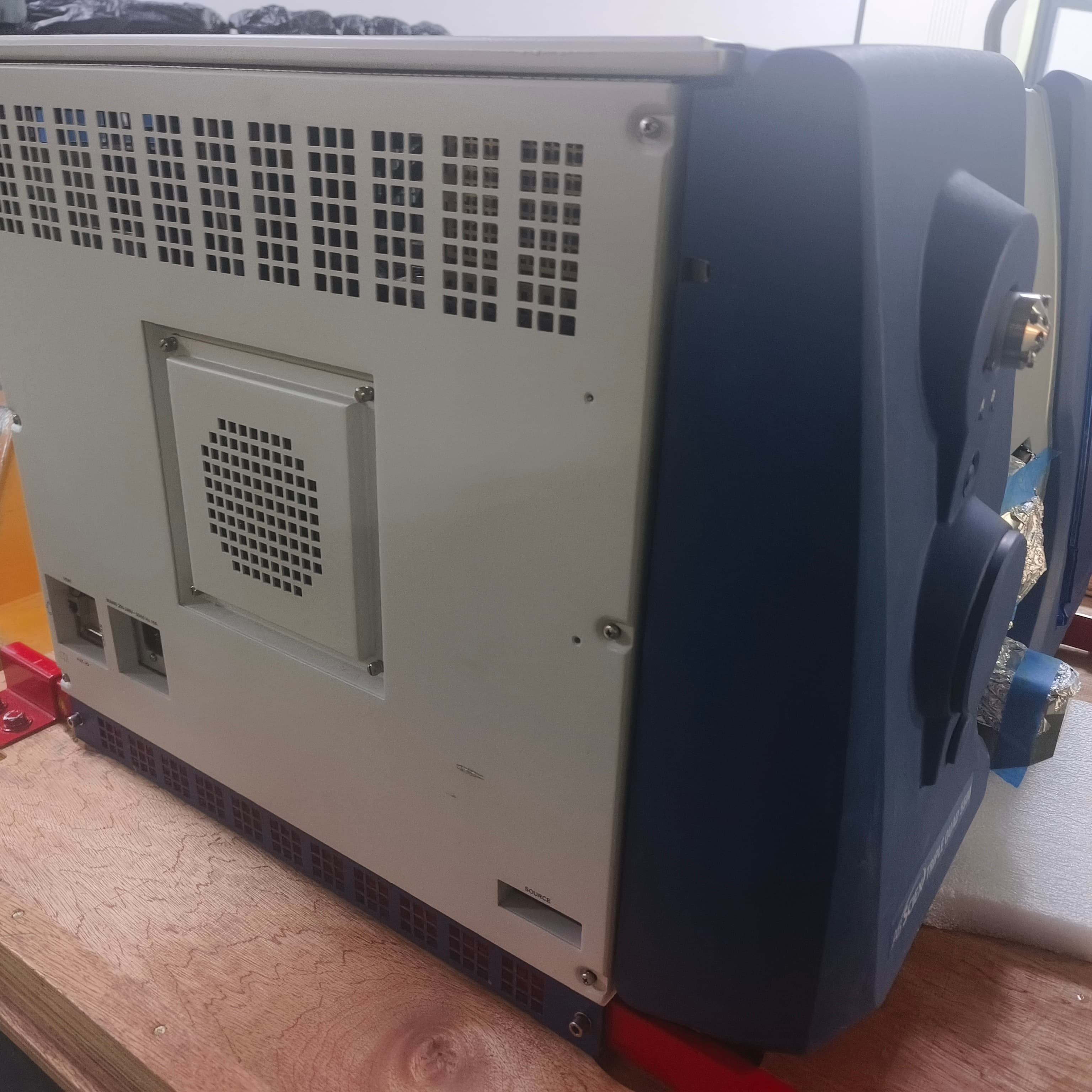

Usted AB Sciex 5500 LC-MS/MS

The AB Sciex 5500 LC-MS/MS system, also known as the SCIEX Triple Quad 5500, is a high-performance triple quadrupole mass spectrometer designed to deliver exceptional sensitivity, robustness, and speed for demanding quantitative and qualitative analyses. It is a cornerstone instrument in the SCIEX portfolio, bridging the gap between routine analysis and advanced research applications. The system is particularly noted for its "QTRAP Ready" capability, allowing it to function as both a standard triple quadrupole and a hybrid triple quadrupole-linear ion trap (QTRAP) system.

Technical Specifications and Core Features

The 5500 system is built on a foundation of fast eQ™ electronics, which enables rapid data acquisition and processing. It features a mass range of 5 to 1250 m/z, making it suitable for a wide variety of small molecules, peptides, and metabolites. A key performance metric is its high acquisition rate of up to 500 MRM (Multiple Reaction Monitoring) transitions per second, which allows for the simultaneous quantification of hundreds of compounds in a single run without compromising chromatographic resolution. The system also boasts a rapid polarity switching time of just 5 milliseconds, enabling the analysis of both positive and negative ions within the same chromatographic peak for increased throughput.

The system is equipped with the Turbo V™ ion source, which provides high ionization efficiency and robustness across a wide range of flow rates, from microflow to high-flow LC conditions. The detector technology includes a high-energy dynode and multichannel electron multiplier, offering a linear dynamic range of up to six orders of magnitude. This ensures accurate quantification of analytes present at trace levels as well as those in high abundance.

QTRAP Functionality and Advanced Scans

A defining feature of the 5500 system is its QTRAP capability. When the optional QTRAP functionality is activated, the third quadrupole (Q3) operates as a linear ion trap. This hybrid design unlocks powerful scan modes that are not available on standard triple quadrupoles. These include:

• Enhanced Product Ion (EPI) Scans: Provides high-sensitivity MS/MS spectra for confident compound identification and structural elucidation.

• MRM³ (MS/MS/MS): An advanced scan that adds a third stage of mass filtering, significantly reducing chemical background noise and improving selectivity for challenging matrices.

• Neutral Loss and Precursor Ion Scans: These classic triple quadrupole scans are performed with enhanced sensitivity, aiding in the discovery of unknown metabolites or related compounds.

Applications and Workflows

The AB Sciex 5500 is a versatile workhorse used across multiple industries. In pharmaceutical and clinical research, it is employed for drug metabolism and pharmacokinetics (DMPK) studies, bioanalysis, and biomarker verification. Its high sensitivity allows for the quantification of drugs and metabolites at very low concentrations in complex biological matrices like plasma and urine.

In food safety and environmental testing, the system excels at multi-residue analysis, detecting pesticides, veterinary drug residues, and contaminants at levels required by stringent regulations. The combination of fast MRM acquisition and QTRAP confirmation scans provides both quantitative data and qualitative confirmation in a single injection, streamlining compliance workflows.

Software and Usability

The system is typically controlled by SCIEX's Analyst® software for method development and data acquisition, with data processing often handled by SCIEX OS software. The platform is designed for ease of use, featuring intelligent algorithms for automatic peak integration and outlier detection, which reduces manual review time and increases laboratory productivity. The system's smaller footprint compared to some newer models makes it a space-efficient choice for many laboratories.

In summary, the AB Sciex 5500 LC-MS/MS system is a robust and highly capable instrument that offers the reliability of a triple quadrupole with the added power of ion trap technology. It remains a popular choice for laboratories requiring high-throughput quantitative analysis with the flexibility to perform advanced qualitative investigations.
