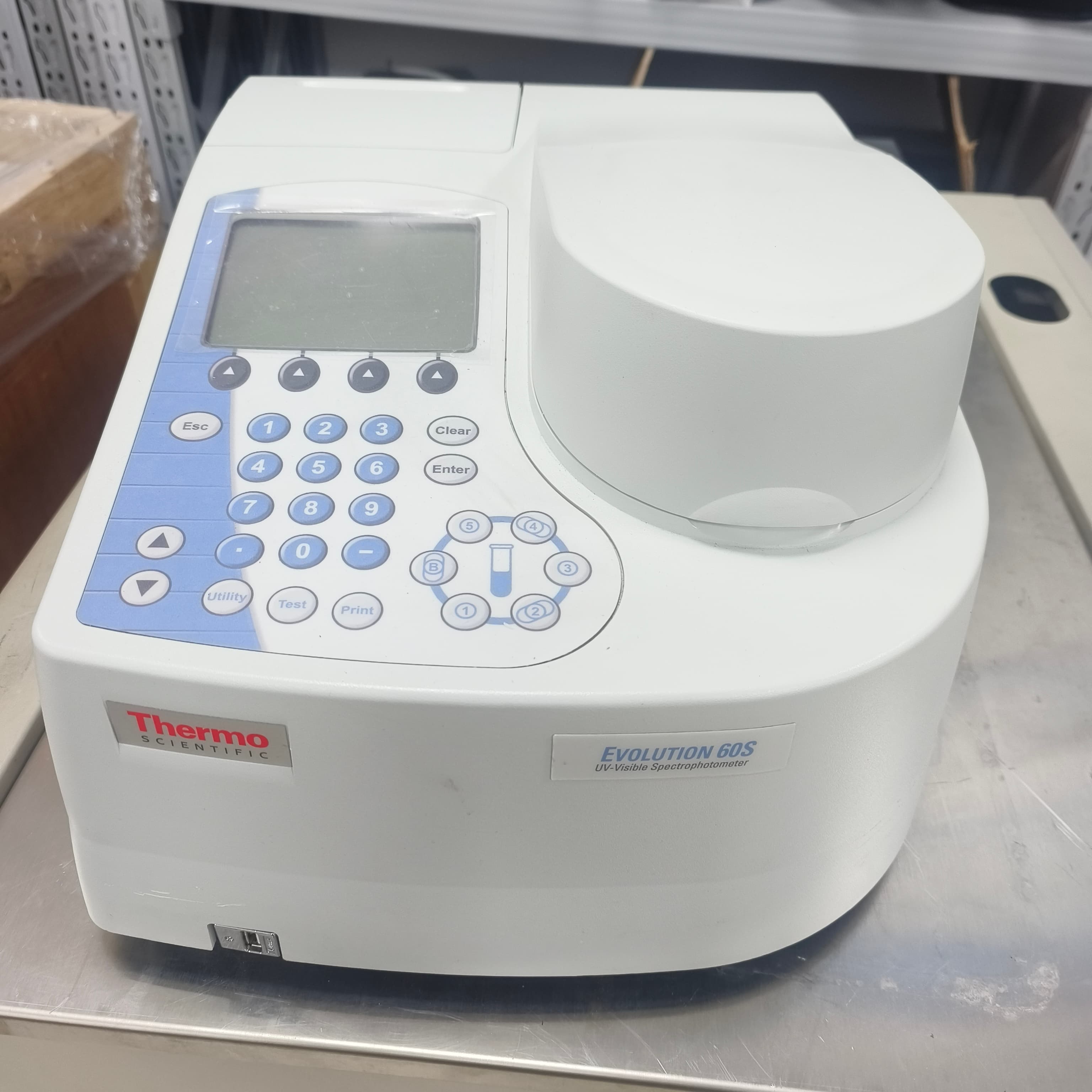

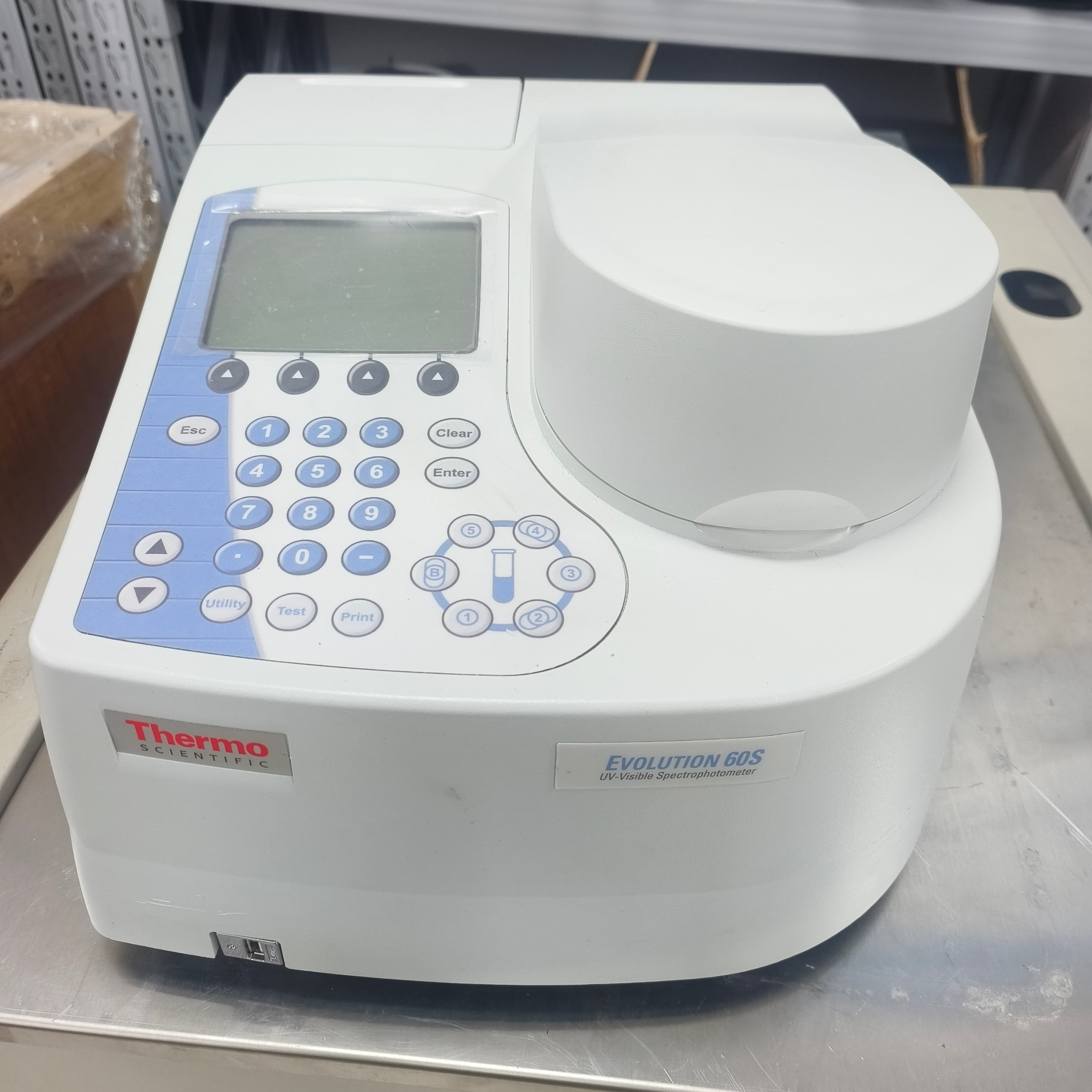

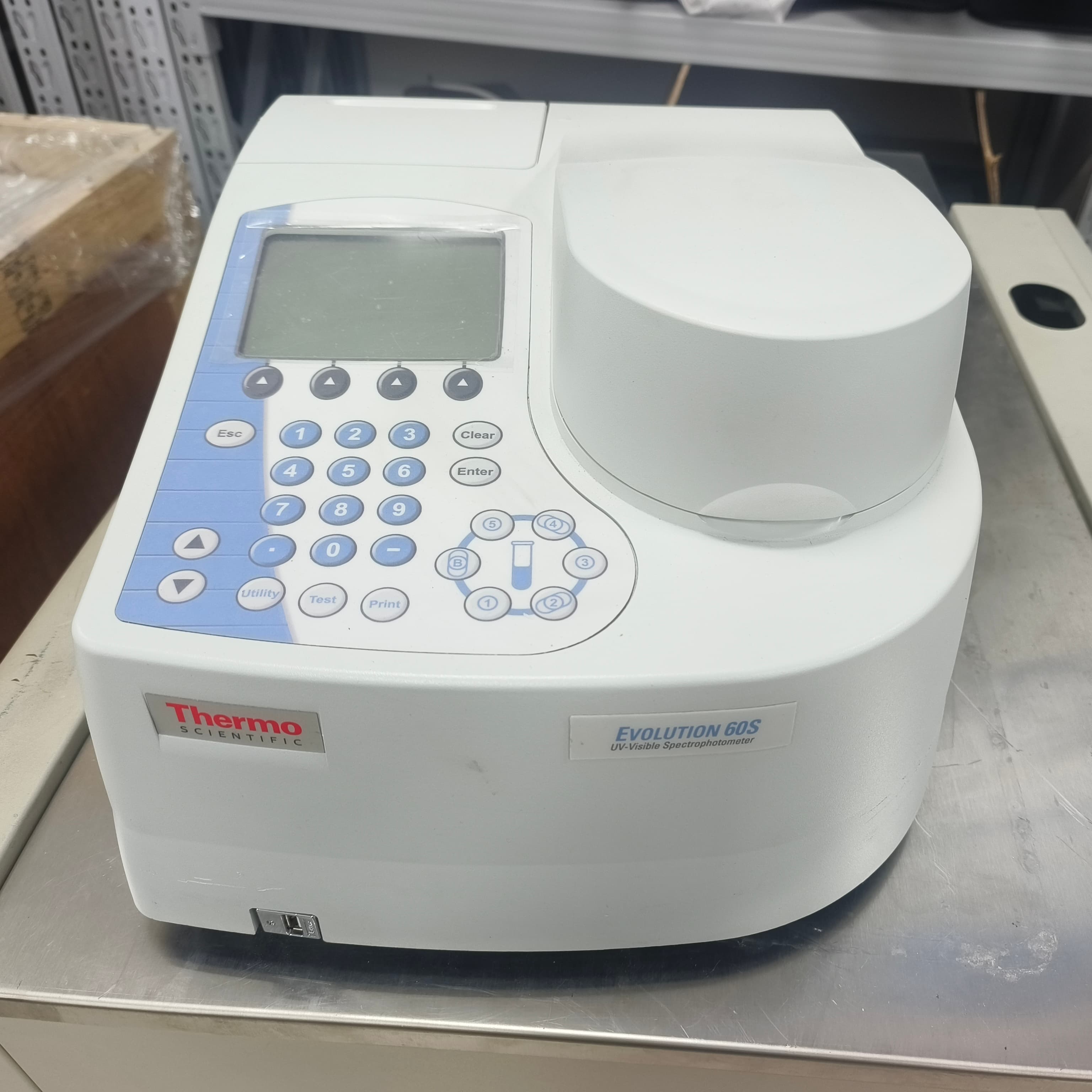

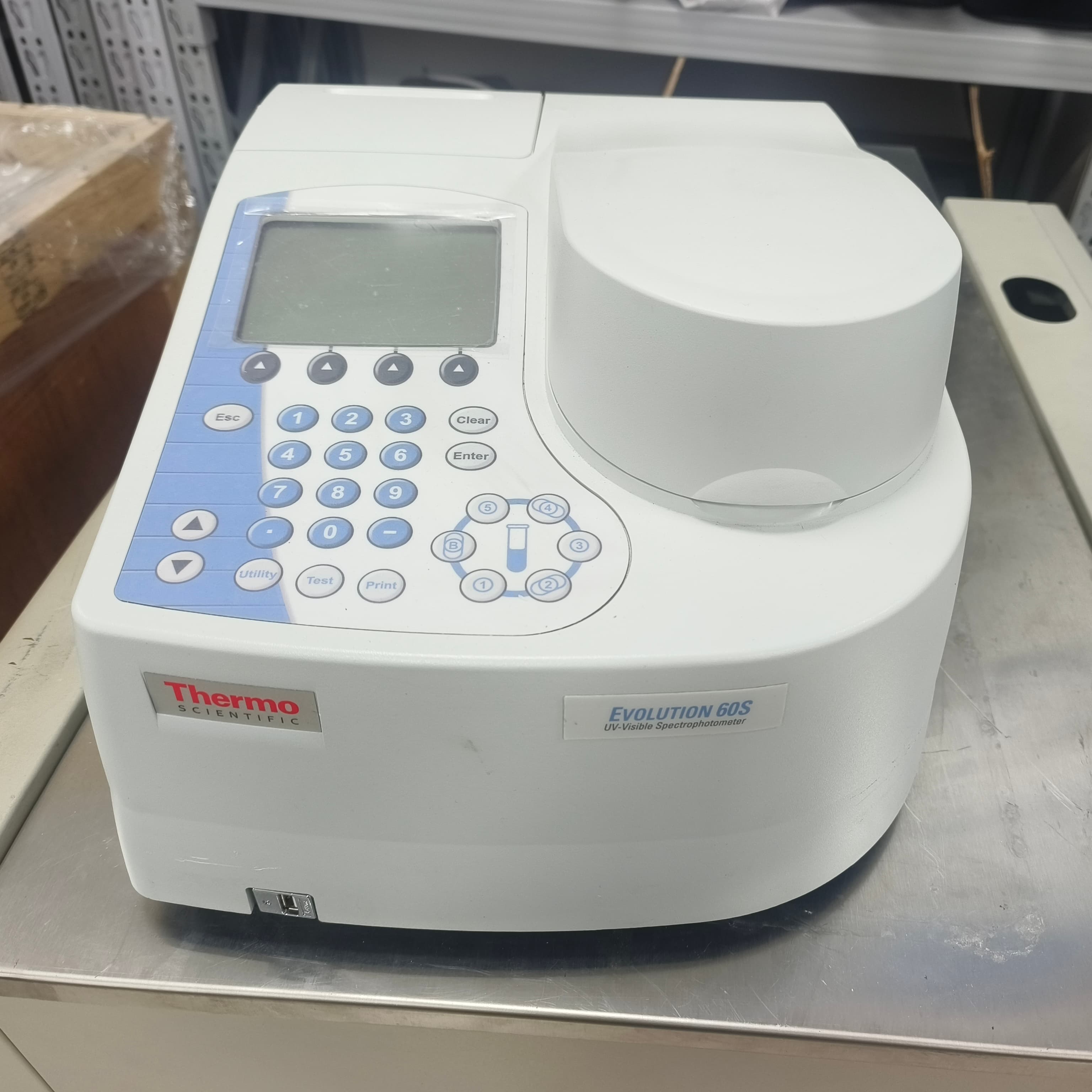

The Thermo Scientific™ Evolution™ 60S UV-Vis Spectrophotometer is a versatile, high-performance benchtop instrument designed for routine analysis and research in life sciences, pharmaceuticals, and environmental testing. It combines a compact footprint with advanced features like a maintenance-free xenon flash lamp and an intuitive touchscreen interface, making it ideal for laboratories that require reliable data with minimal setup time.
The Evolution 60S is engineered for ease of use and accuracy. Its dual-beam optical system ensures exceptional photometric stability over long periods, which is critical for kinetic studies and quality control assays. Unlike traditional deuterium lamps, the integrated pulsed xenon flash lamp has a typical lifetime of 3+ years and requires no warm-up time, allowing for true "on-demand" measurements and significantly reducing energy consumption. The system also features a built-in 6-cell auto-changer for high-throughput analysis and supports data export via USB for streamlined workflow integration.
The following table details the core performance parameters of the Evolution 60S, based on manufacturer datasheets.
|
Parameter |
Specification |
|---|---|
|
Wavelength Range |
190 – 1100 nm |
|
Spectral Bandwidth |
1.0 nm (fixed) |
|
Photometric Range |
Abs: -0.5 to 5.0 A; Transmittance: -1.5 to 125%T |
|
Wavelength Accuracy |
±1.0 nm |
|
Wavelength Repeatability |
±0.5 nm |
|
Stray Light |
< 0.08%T at 220 nm (NaI), 340 nm (NaNO₂) |
|
Scanning Speed |
Up to 4200 nm/min |
|
Light Source |
Pulsed Xenon Flash Lamp (maintenance-free) |
|
Detector |
Dual Silicon Photodiodes |
|
Optical System |
Double Beam, UV-Vis Spectrophotometer |
|
Display |
Backlit LCD Graphic Display (3.8 x 2.8 in) |
|
Connectivity |
USB A (Front, for storage), USB B (Rear, for PC) |
|
Sample Handling |
Standard 6-position Automatic Cell Changer |
|
Dimensions (WxDxH) |
30 x 40 x 25 cm (11.8 x 15.7 x 9.8 in) |
|
Weight |
8.6 kg (19 lbs) |
|
Power Supply |
100–240 V, 50/60 Hz |
The Evolution 60S is well-suited for a wide range of applications, including nucleic acid and protein quantification (with pre-programmed methods), concentration determination via Beer-Lambert law, and kinetic enzyme assays. Its user-friendly interface allows for both standalone operation via the touchscreen and computer control using Thermo Scientific™ INSIGHT™ or VISIONlite™ software. The inclusion of pre-configured application methods reduces method development time, while the automatic cell changer enables unattended processing of multiple samples, enhancing laboratory efficiency.
In summary, the Thermo Scientific Evolution 60S offers a robust combination of optical performance, operational simplicity, and low cost of ownership, making it a dependable choice for modern analytical laboratories.
