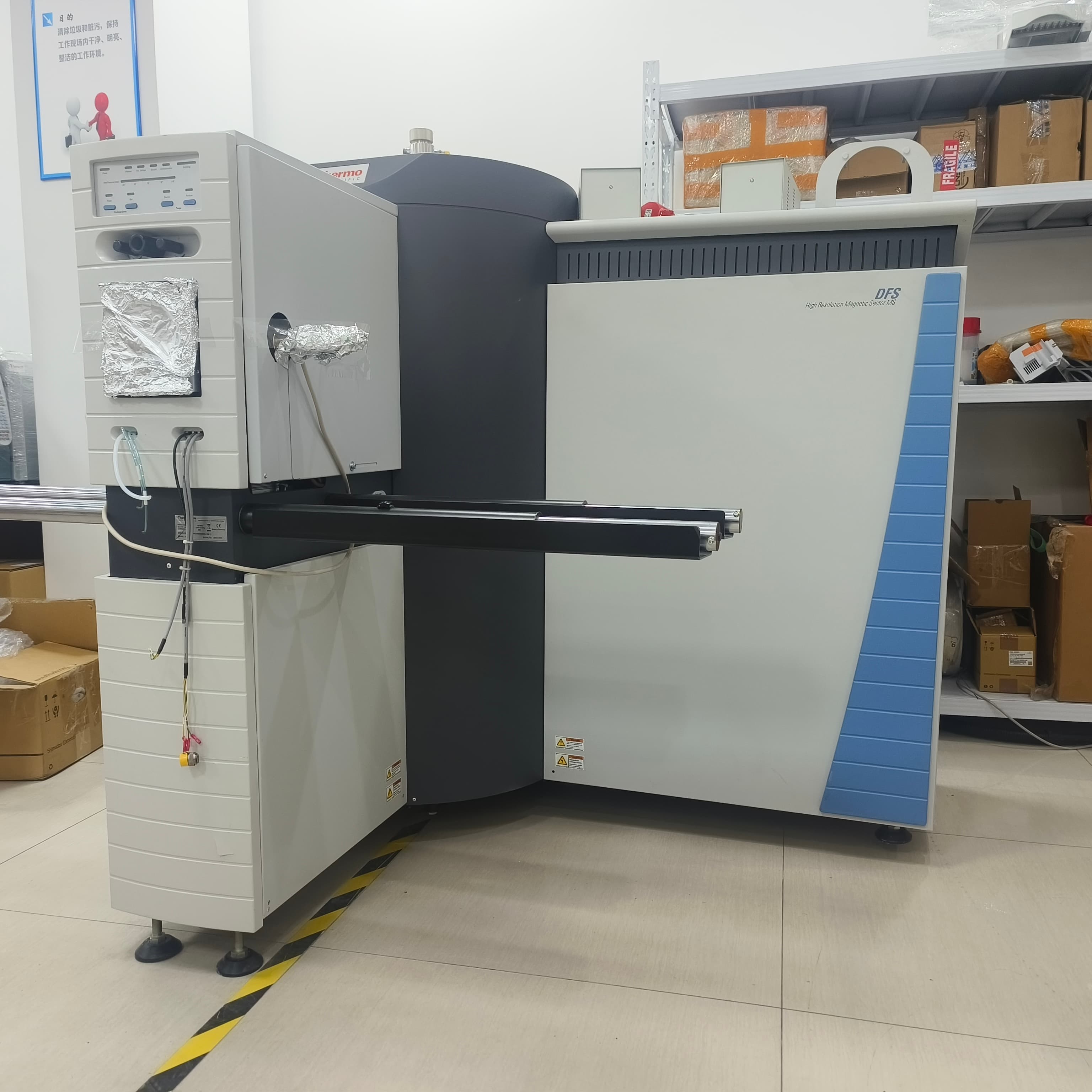

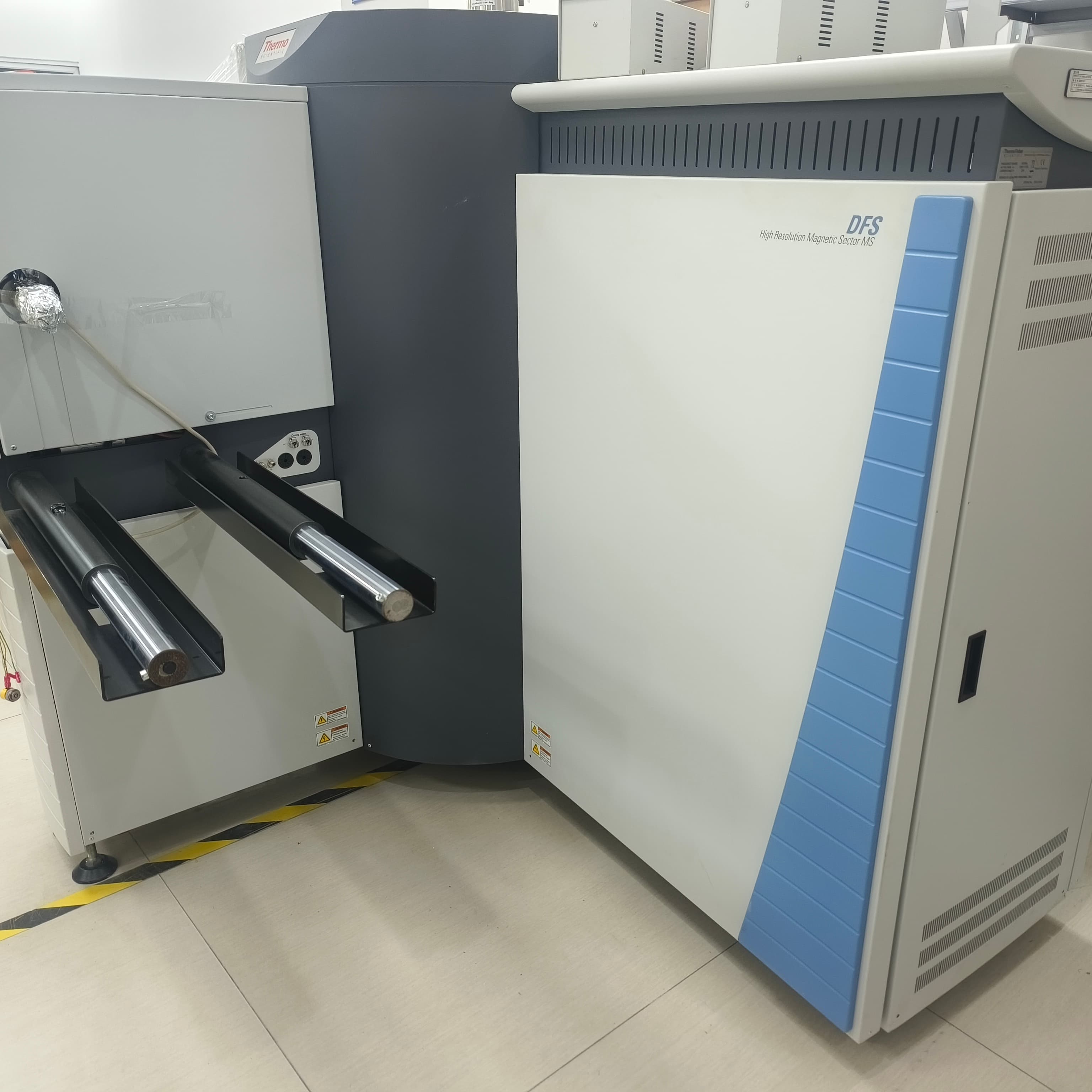

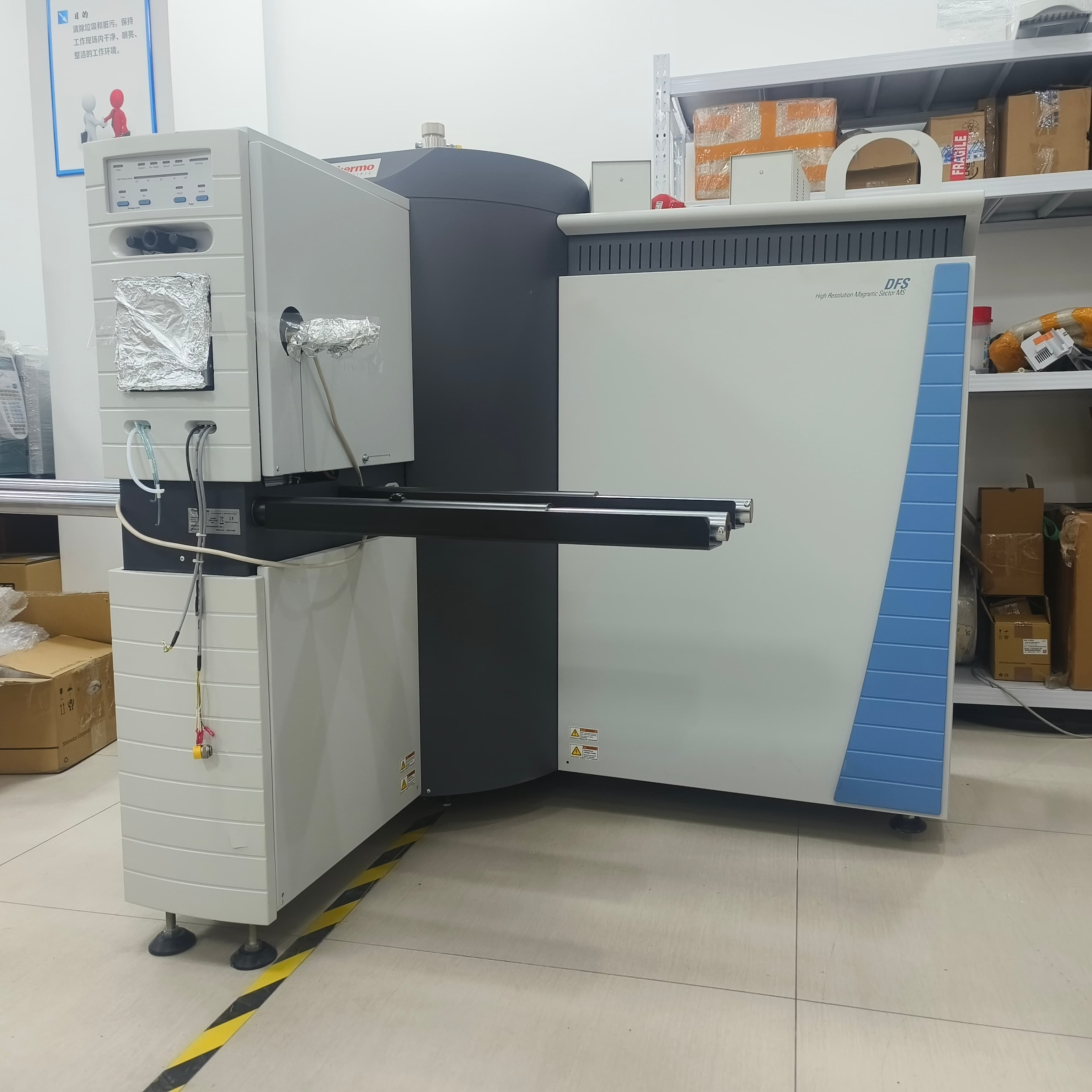

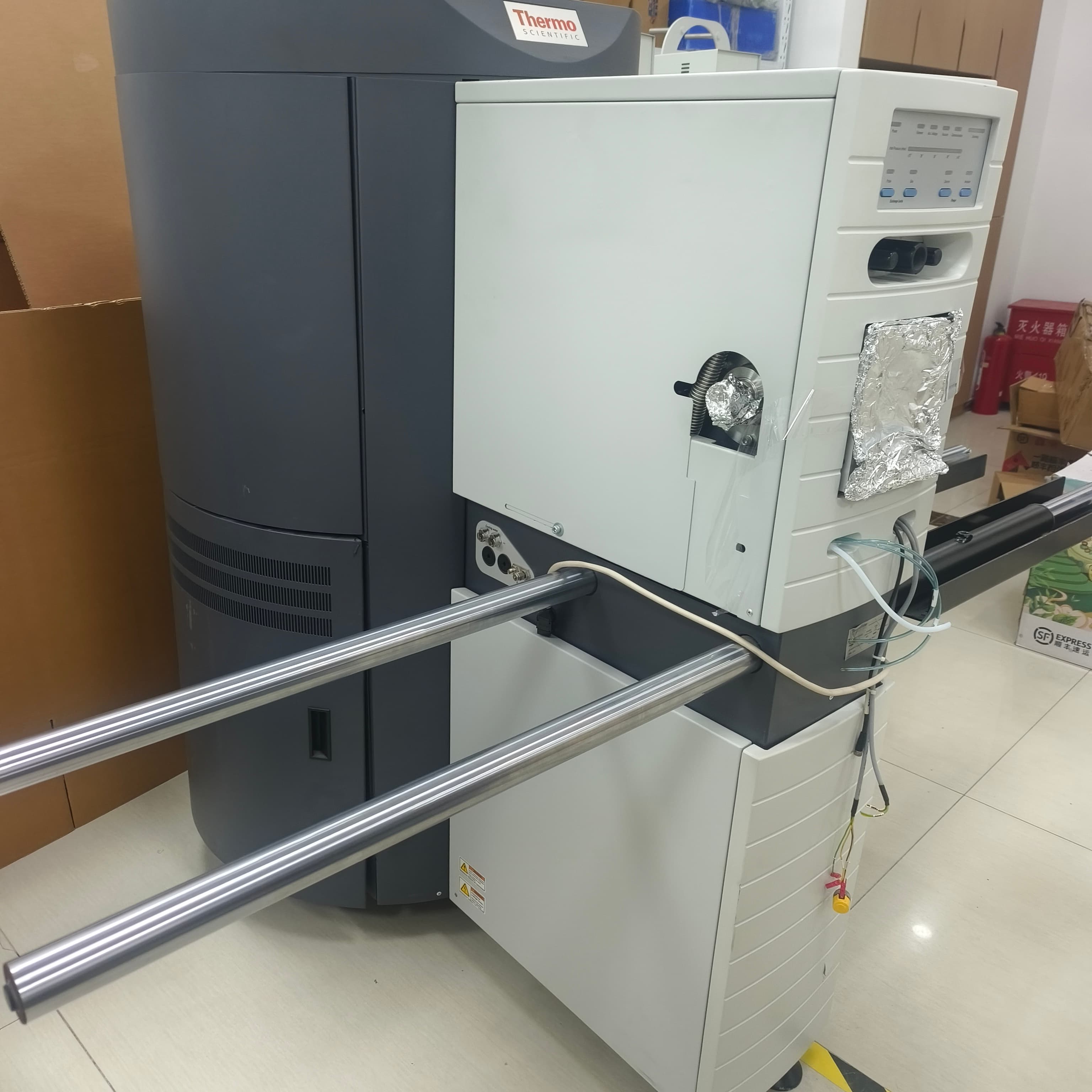

Thermo Scientific DFS High-Resolution Double Focusing Magnetic Sector Mass Spectrometer​

The Thermo Scientific DFS High-Resolution Double Focusing Magnetic Sector Mass Spectrometer​ (often termed DFS GC-HRMS) is not merely an instrument but a regulatory-grade analytical platform. It represents the pinnacle of magnetic sector technology, engineered to solve the most demanding challenges in ultra-trace quantitative analysis where conventional quadrupole or time-of-flight systems falter. Its primary mission is to deliver uncompromising sensitivity and selectivity for the detection of toxic compounds like dioxins and persistent organic pollutants (POPs) at femtogram (fg) levels, even in the most complex and contaminated sample matrices.

The "Gold Standard" in High-Resolution GC-MS

Unlike modern orbital trap or Q-TOF instruments that separate ions in time, the DFS employs a classic but highly refined double-focusing magnetic sector​ architecture. This design uses a combination of an electrostatic analyzer (ESA) and a powerful magnet to separate ions in space. The result is mass-independent resolution​ and an exceptional signal-to-noise ratio, making it the undisputed "gold standard" for compliance with stringent international methods such as EPA 1613​ (dioxins) and EPA 1668​ (PCBs).

Core Technology & Design Philosophy

The DFS is built around the principle of "double focusing"—a two-stage filtering process that corrects for both the directional spread and kinetic energy spread of ions. This is achieved through a specific geometry: ions first pass through a curved electrostatic field​ (ESA) that focuses ions by energy, followed by a magnetic sector​ that focuses ions by momentum. This dual-stage purification of the ion beam allows the DFS to achieve a stable, high static resolution (typically >60,000), which is critical for separating target analyte ions from interfering isobaric ions in dirty samples like soil, fly ash, or biological extracts.

A key design innovation is its modular ion source. The DFS features an inert, large-volume ion source and a unique vacuum lock system. This allows for the "hot-swapping" of the entire ion source or filaments without venting the entire mass spectrometer, drastically reducing maintenance downtime from days to hours and ensuring maximum instrument uptime for routine labs.

Key Performance Specifications

The following table summarizes the benchmark performance metrics that define the DFS's capabilities.

Unmatched Workflow Efficiency

The DFS is designed for high-throughput regulatory laboratories. Two standout features enhance its productivity far beyond that of a standard GC-MS:

1. Dual GC Configuration: The DFS is one of the few systems capable of being interfaced with two independent gas chromatographs (GCs)​ simultaneously. This "Dual GC" setup allows one GC to analyze samples while the other is being serviced or conditioned, or for running two different analytical methods in parallel, effectively doubling laboratory throughput.

2. DualData XL Module: An optional hardware/software module that enables the acquisition of data from two different GC channels or columns in a single run, further increasing data yield without compromising sensitivity.

The system is controlled by Thermo Scientific Xcalibur​ and DFS TargetQuan​ software, which are specifically tailored for the rigorous demands of isotope dilution quantification and compliance reporting for dioxin and POPs analysis.

Primary Application Domains

The DFS is the instrument of choice in scenarios where failure is not an option:

• Environmental Monitoring: The definitive tool for analyzing dioxins, furans, PCBs, and PBDEs in air, water, soil, and industrial emissions.

• Food & Feed Safety: Ensuring compliance with EU and global limits for toxic contaminants in foodstuffs and animal feed.

• Forensic & Doping Control: Confirming the presence of ultra-trace levels of banned substances or metabolites in biological fluids with legal defensibility.

In essence, the Thermo Scientific DFS is more than a mass spectrometer; it is a compliance assurance system. Its robust magnetic sector architecture, coupled with femtogram-level sensitivity and unparalleled selectivity, provides laboratories with the ultimate confidence needed for the world's most stringent trace analysis.
