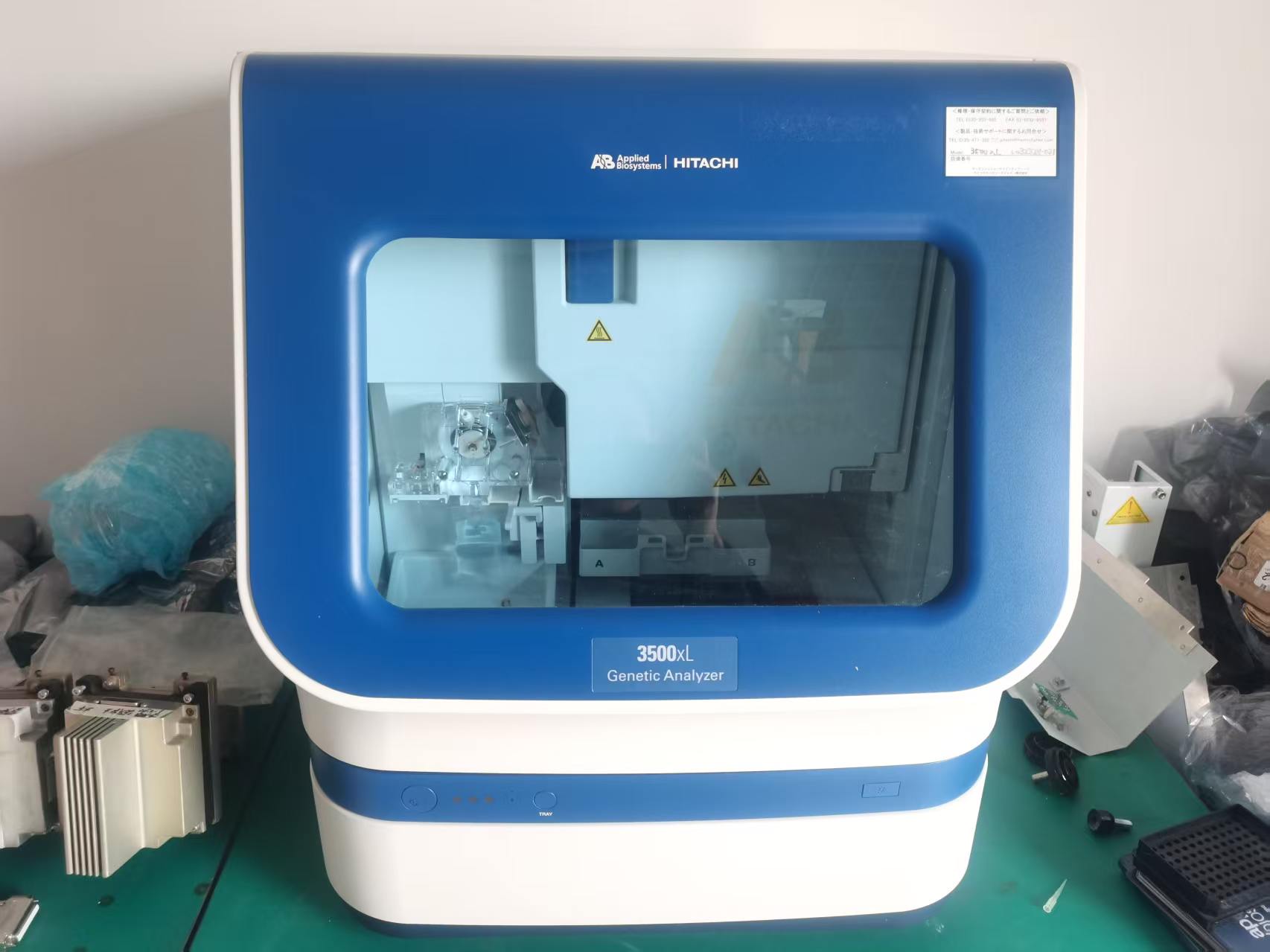

Used Hitachi ABI 3500 Genetic Analyzer

The Hitachi ABI 3500 Genetic Analyzer, often referred to as the ABI 3500, is a capillary electrophoresis (CE) system co-developed by Hitachi and Applied Biosystems (now under Thermo Fisher Scientific). It represents a cornerstone instrument in molecular biology laboratories, bridging the gap between high-end research and regulated clinical diagnostics. As a workhorse for Sanger sequencing and fragment analysis, it is renowned for its robust performance, automation, and compliance with stringent quality standards, making it a preferred choice for clinical research, forensic identification, and genetic disease testing.

At the heart of the ABI 3500 is its 8-capillary array system (with an upgrade path to the 24-capillary 3500xl configuration), which automates the entire process from polymer filling and sample injection to electrophoresis and detection. This "load-and-go" workflow significantly reduces hands-on time and operational variability. The system utilizes a long-life, solid-state laser emitting at 505 nm to excite fluorescently labeled DNA fragments (BigDye terminators). As these fragments migrate through the capillary under high voltage (up to 20 kV), they are separated by size. The emitted fluorescence is collected by a CCD camera, enabling simultaneous detection of four to six colors. This allows for high-resolution sequencing and precise genotyping, with a typical sequencing read length of over 600 bases and the ability to resolve fragments from 50 to over 1000 bp with high accuracy.

A defining feature of the ABI 3500 is its design for data integrity and traceability, which is critical for clinical and forensic labs adhering to GLP/GMP guidelines. It incorporates RFID (Radio-Frequency Identification) technology to track key consumables such as capillary arrays, polymer bottles, and buffer solutions. The system automatically records batch numbers, expiration dates, and usage, ensuring that runs are only initiated with validated reagents. The integrated Data Collection Software provides a user-friendly dashboard for run setup, real-time quality monitoring, and preliminary analysis. It seamlessly interfaces with secondary analysis software like Sequencing Analysis, GeneMapper, and Variant Reporter for comprehensive data interpretation.

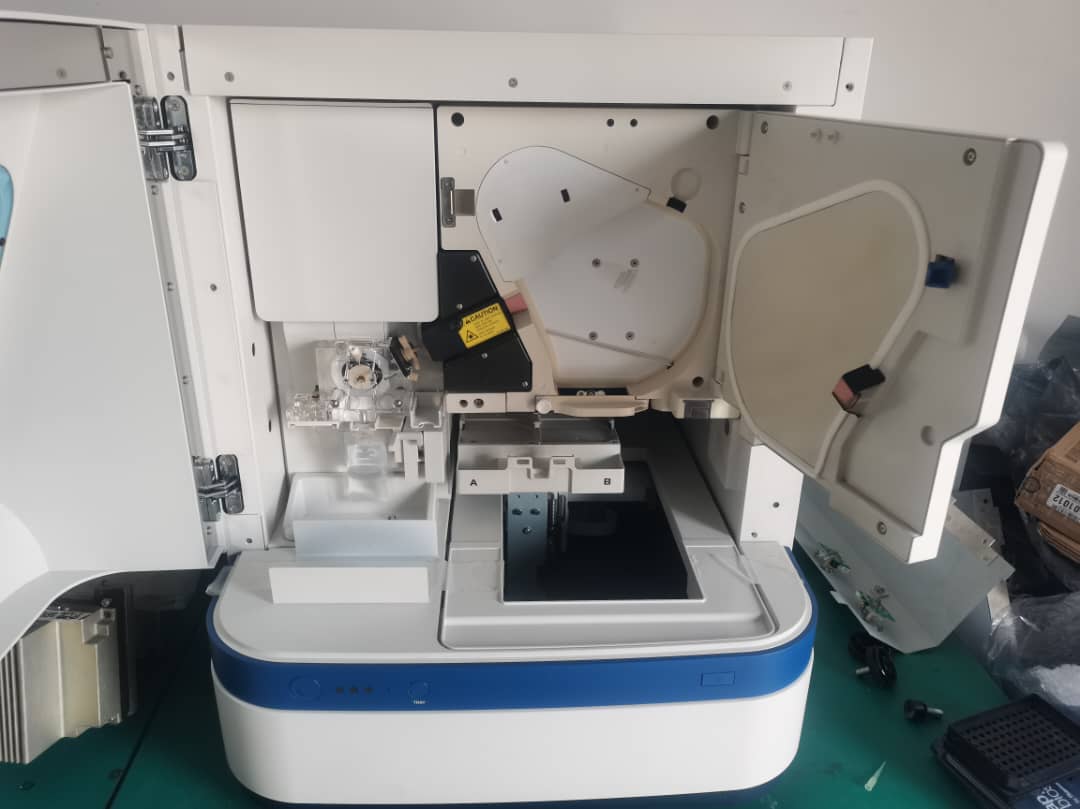

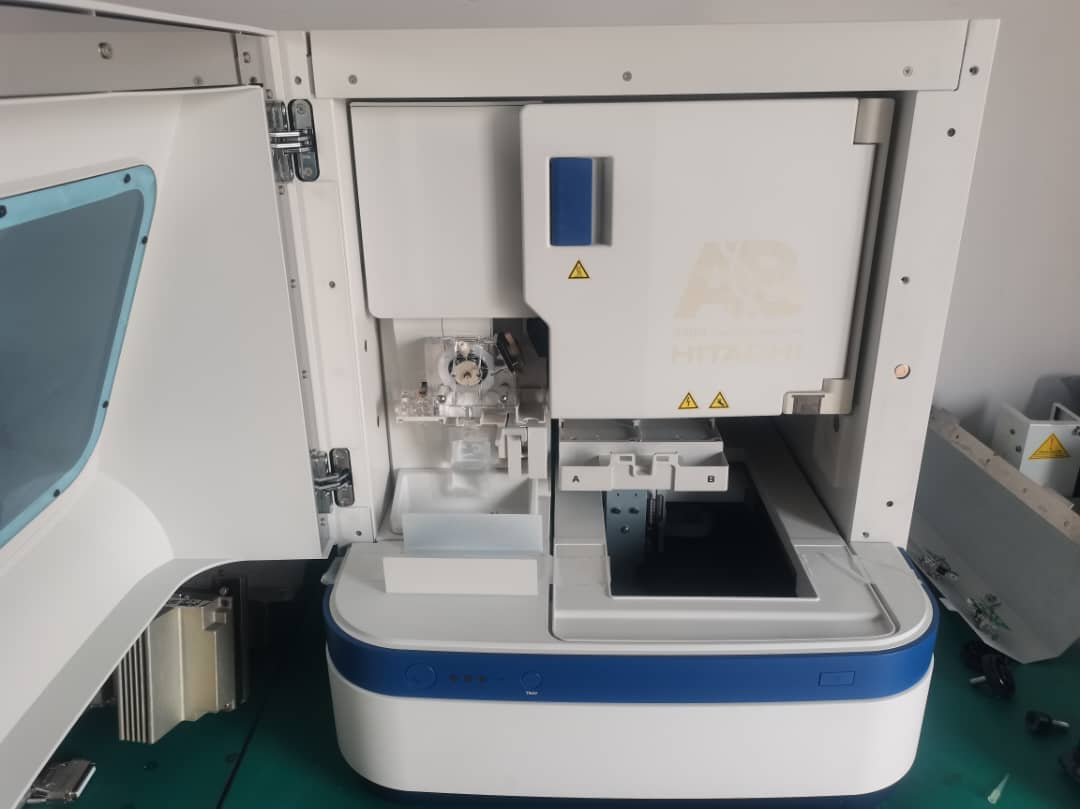

The instrument's physical design prioritizes stability and ease of use. It features a dynamic temperature control system for the capillary oven, maintaining a range from 18°C to 70°C with high precision, which is essential for reproducible fragment analysis and microsatellite genotyping. The system is relatively compact and operates under standard laboratory conditions. It supports a variety of sample formats, including 96-well and 384-well plates, as well as 8-tube strips, offering flexibility for different throughput needs. For medium-sized labs, the standard 8-capillary ABI 3500 provides a balance of speed and accessibility, while the 3500xl variant caters to high-volume sequencing centers requiring higher throughput.

In summary, the Hitachi ABI 3500 Genetic Analyzer is a versatile and reliable platform that has stood the test of time. Its combination of automated operation, multi-color fluorescence detection, and built-in compliance features makes it an indispensable tool for laboratories where accuracy, reproducibility, and data audit trails are paramount. Whether used for validating next-generation sequencing results, conducting paternity tests, or screening for genetic mutations, the ABI 3500 continues to be a benchmark for quality in genetic analysis.
