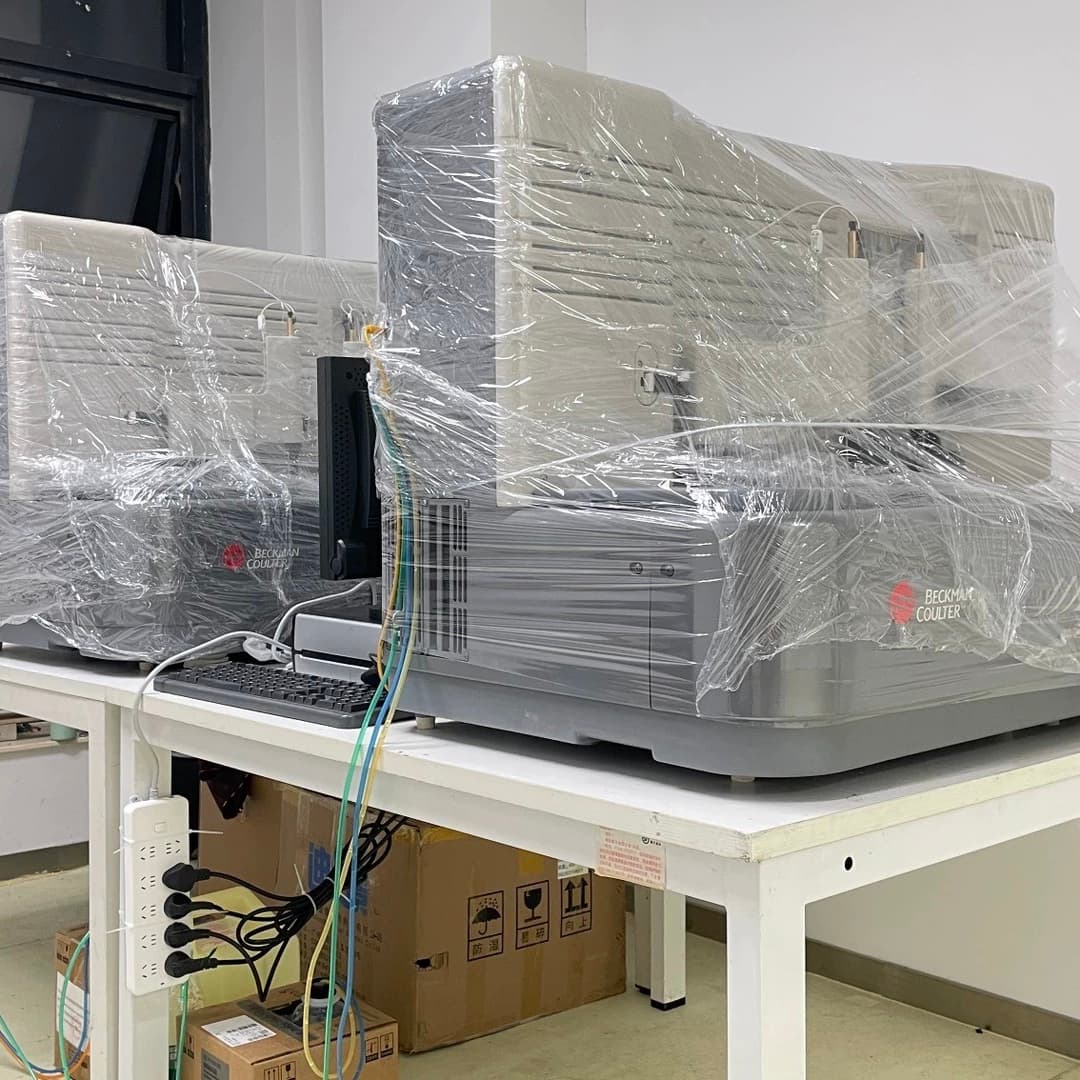

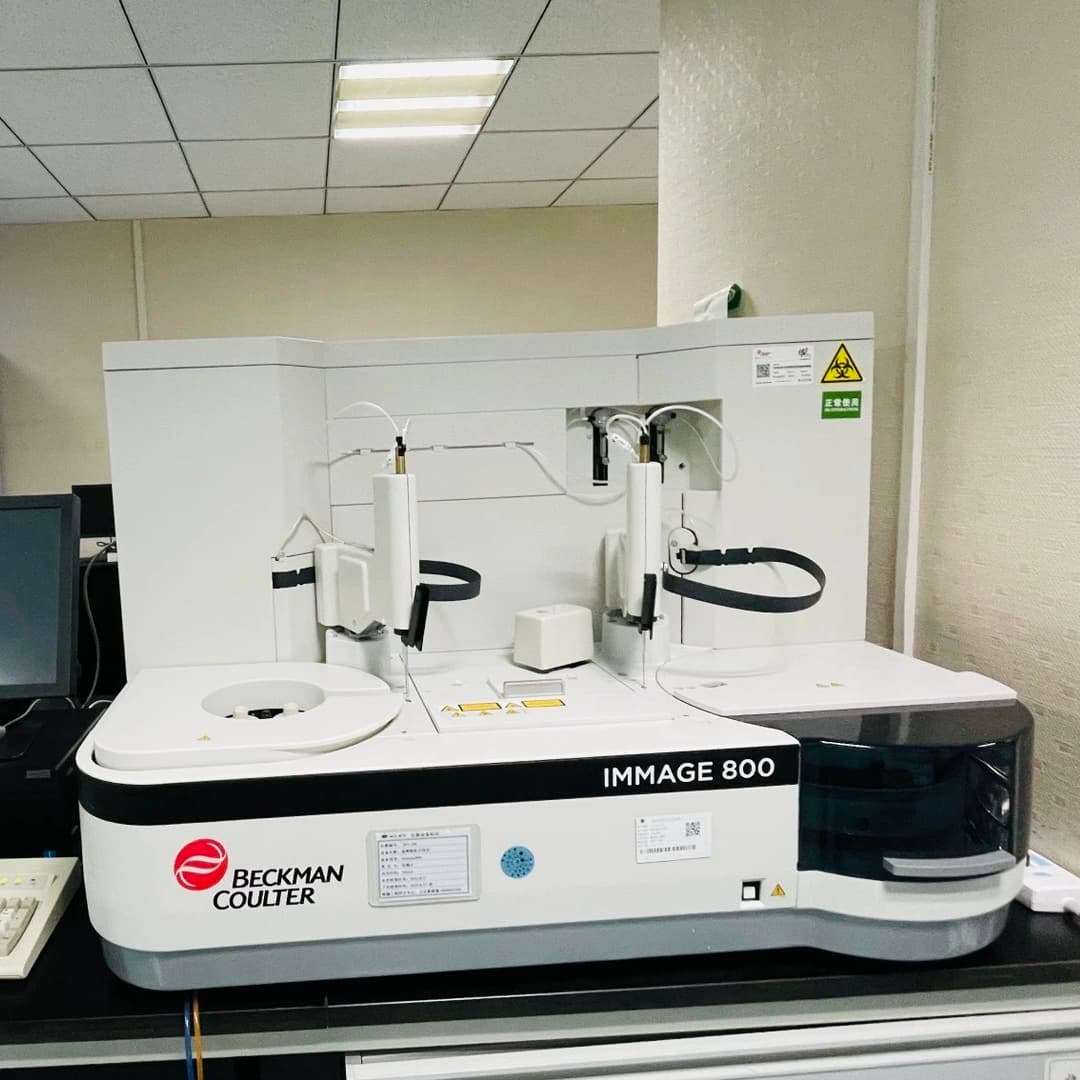

Used Beckman Coulter IMMAGE 800 Immunochemistry System

The Beckman Coulter IMMAGE 800 Immunochemistry System​ is an automated, high-throughput analyzer designed for precise protein quantification in clinical laboratories. Utilizing a combination of nephelometry and turbidimetry technologies, it delivers rapid and reliable results for a wide range of immunochemistry applications, from routine inflammation markers to specialized protein studies.

Core Technology & Performance

The system integrates four primary detection methodologies​ to handle diverse assay requirements: Rate Nephelometry, Rate Inhibition Nephelometry, Near Infrared Particle Rate Turbidimetry, and its inhibition variant. This multi-method approach, powered by a 670 nm laser and a 940 nm near-infrared light source, ensures optimal sensitivity across different molecular sizes. With a throughput of up to 180 tests per hour​ and onboard antigen excess checks, it efficiently processes serum, plasma, urine, and CSF samples with minimal manual intervention.

Workflow Efficiency

Designed for continuous operation, the IMMAGE 800 features a 72-position sample tray and a refrigerated, barcoded reagent compartment holding up to 24 ready-to-use liquid reagents. Its user-defined reagent (UDR) capability allows labs to program up to 50 custom assays, providing significant flexibility for research and specialized testing. The system supports STAT sample interruption and boasts a streamlined maintenance routine, requiring approximately one minute of daily upkeep.

Key Technical Parameters

Applications & Usability

The instrument excels in key clinical areas such as cardiovascular risk assessment​ (hs-CRP, Apo A1/B), autoimmune diagnostics​ (RF, immunoglobulins, complements), and renal/neurological function​ monitoring. The intuitive touchscreen interface, combined with comprehensive onboard data management and QC tracking, makes it a robust and user-friendly platform for medium to high-volume laboratories seeking to consolidate their protein testing workflow.

Note: When procuring a used system, it is critical to verify the service history, laser hours, and calibration status to ensure performance aligns with these specifications.
