Used AB Sciex 6500+ LC-MS/MS system and the Waters Acquity UHPLC

The AB Sciex 6500+ LC-MS/MS system and the Waters Acquity UHPLC represent a gold-standard pairing in modern analytical chemistry, particularly in regulated environments like pharmaceutical development, clinical research, and food safety testing. The 6500+ is a high-end triple quadrupole mass spectrometer renowned for its exceptional sensitivity and quantitative robustness, while the Acquity UHPLC (specifically the I-Class platform) is the industry benchmark for ultra-high-performance liquid chromatography, delivering the high-resolution separations necessary to feed the fast-acquisition capabilities of modern MS detectors.

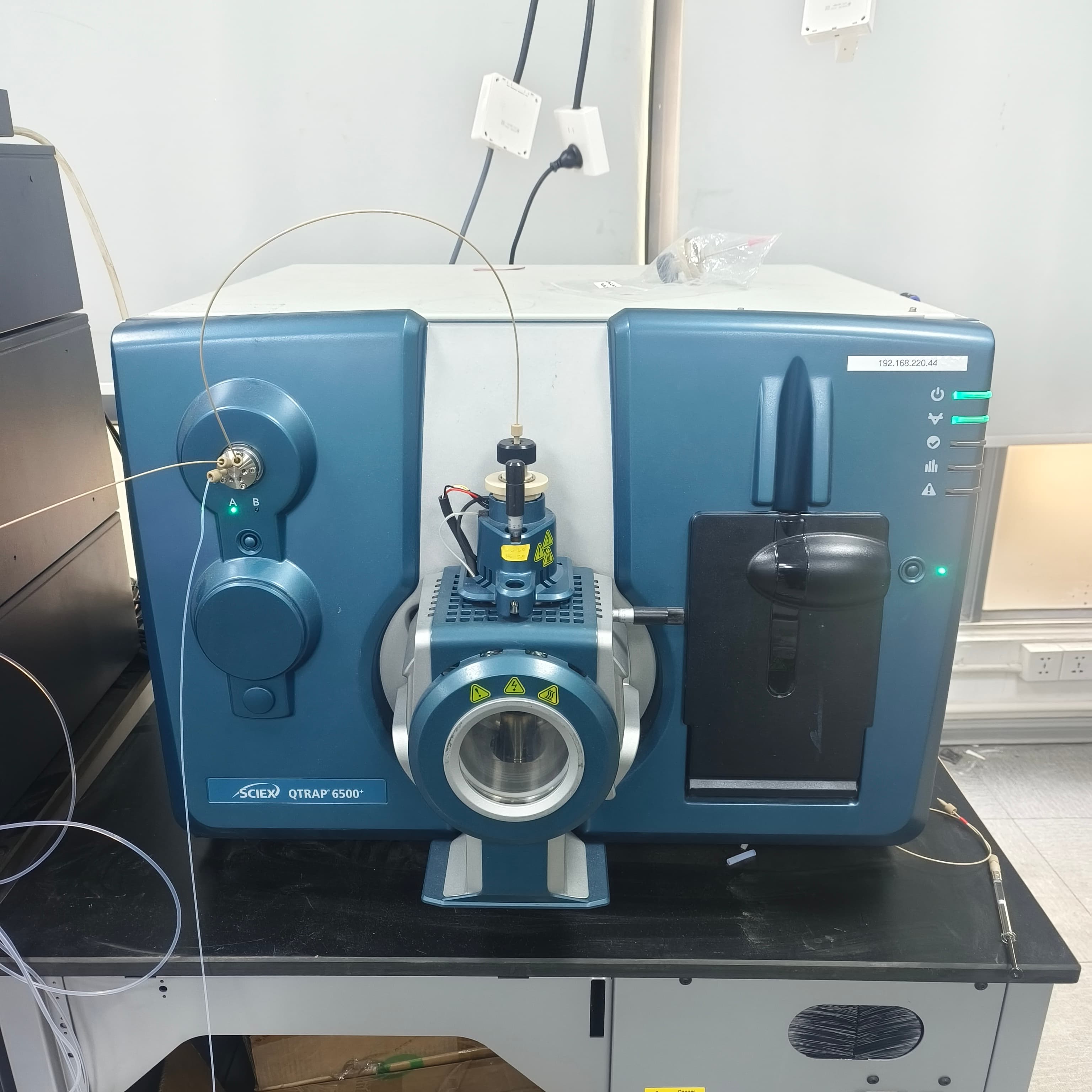

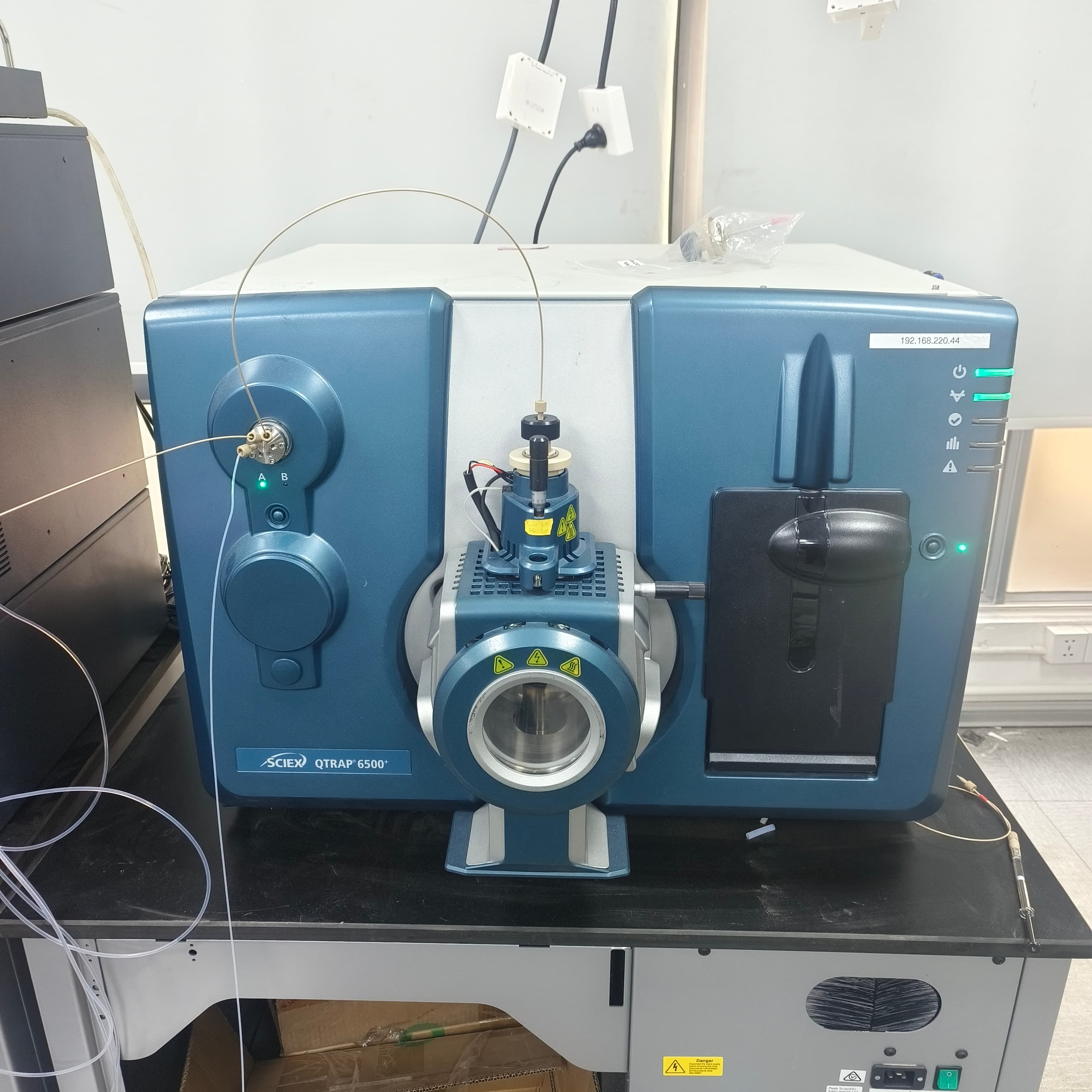

The AB Sciex 6500+ series, encompassing both the Triple Quad 6500+ and the QTRAP 6500+ (which adds linear ion trap functionality), is engineered for the most demanding quantitative analyses. Its core innovation lies in the IonDrive™ technology suite, which includes a high-efficiency Turbo V ion source, a large-aperture QJet ion guide for superior ion transmission, and a high-energy detector (HED+) that drastically reduces background noise. This combination enables attogram-to-femtogram level sensitivity and a linear dynamic range spanning up to six orders of magnitude, allowing for the simultaneous quantification of high-abundance and trace-level analytes in a single run. A key feature is its speed: with a scan rate of 12,000 Da/sec and a polarity switching time of just 5 milliseconds, it is perfectly matched to the narrow peaks generated by UHPLC systems. For complex matrices, the optional SelexION+ ion mobility module provides an additional dimension of separation, resolving isobaric interferences and co-eluting isomers without sacrificing throughput. The QTRAP variant further enhances its utility by combining MRM quantification with enhanced product ion (EPI) scanning in a single injection, providing both quantitative data and confirmatory library-searchable spectra for applications like drug metabolite screening and forensic toxicology.

Complementing this powerful detector is the Waters Acquity UHPLC system, specifically the I-Class series, which is designed to maximize peak capacity and minimize dispersion. Unlike conventional HPLC, it operates at pressures up to 15,000–18,000 psi, utilizing sub-2-micron particle columns to achieve superior resolution and faster run times. The system's critical advantage lies in its low-dispersion fluidics; the Binary Solvent Manager (BSM) has an exceptionally low delay volume (under 100 µL), ensuring that the gradient formed at the pump is delivered to the column with minimal mixing and broadening. This is crucial for maintaining the sharp peaks required for high-sensitivity MS detection. The Sample Manager (FTN) offers minimal carryover (typically <0.05%), which is vital for accurate trace-level analysis and for protecting the expensive MS source from cross-contamination. With precise temperature control for both the column and sample manager, and compatibility with 2D-LC configurations for tackling extremely complex samples, the Acquity I-Class provides the pristine chromatographic front-end that unlocks the full potential of the AB Sciex 6500+.

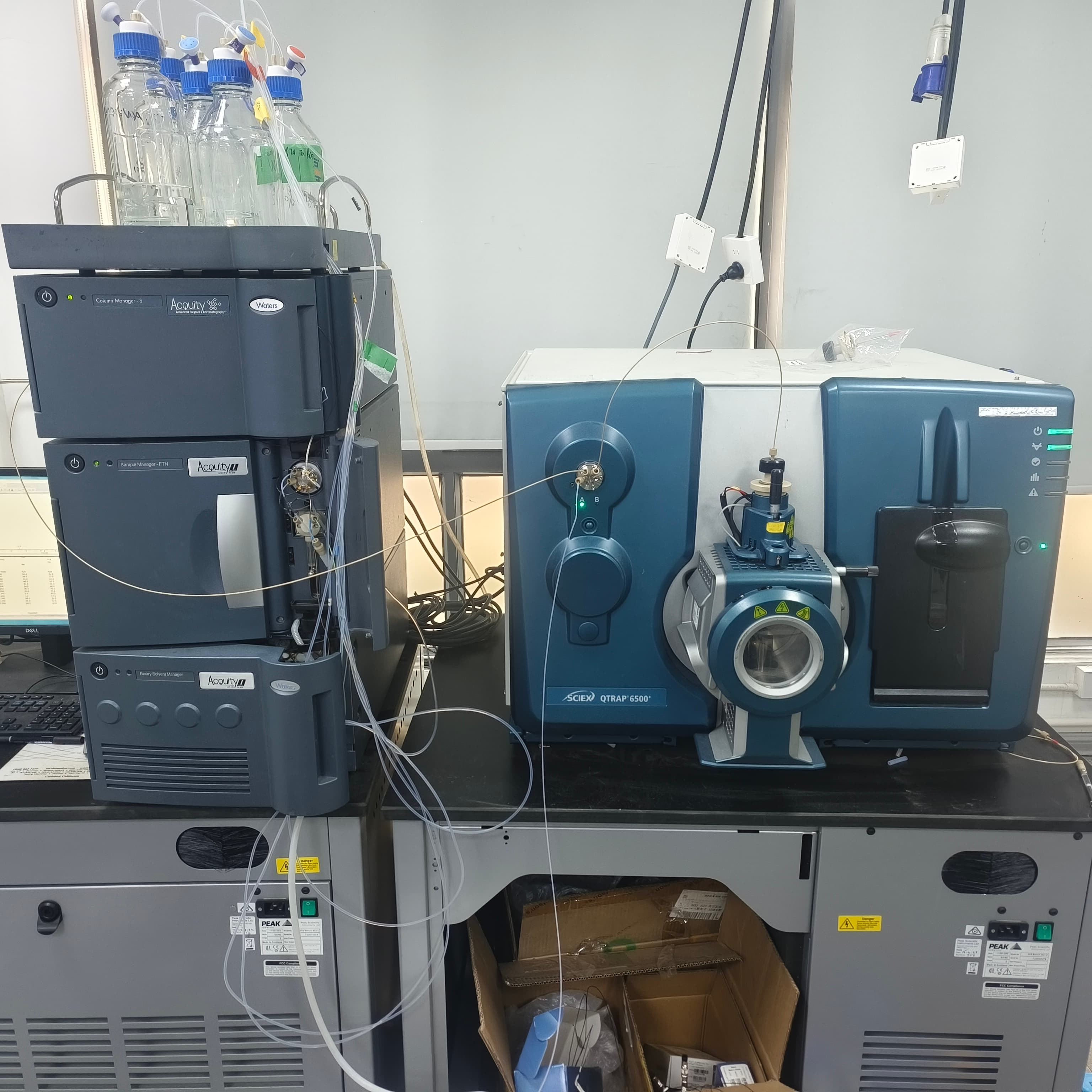

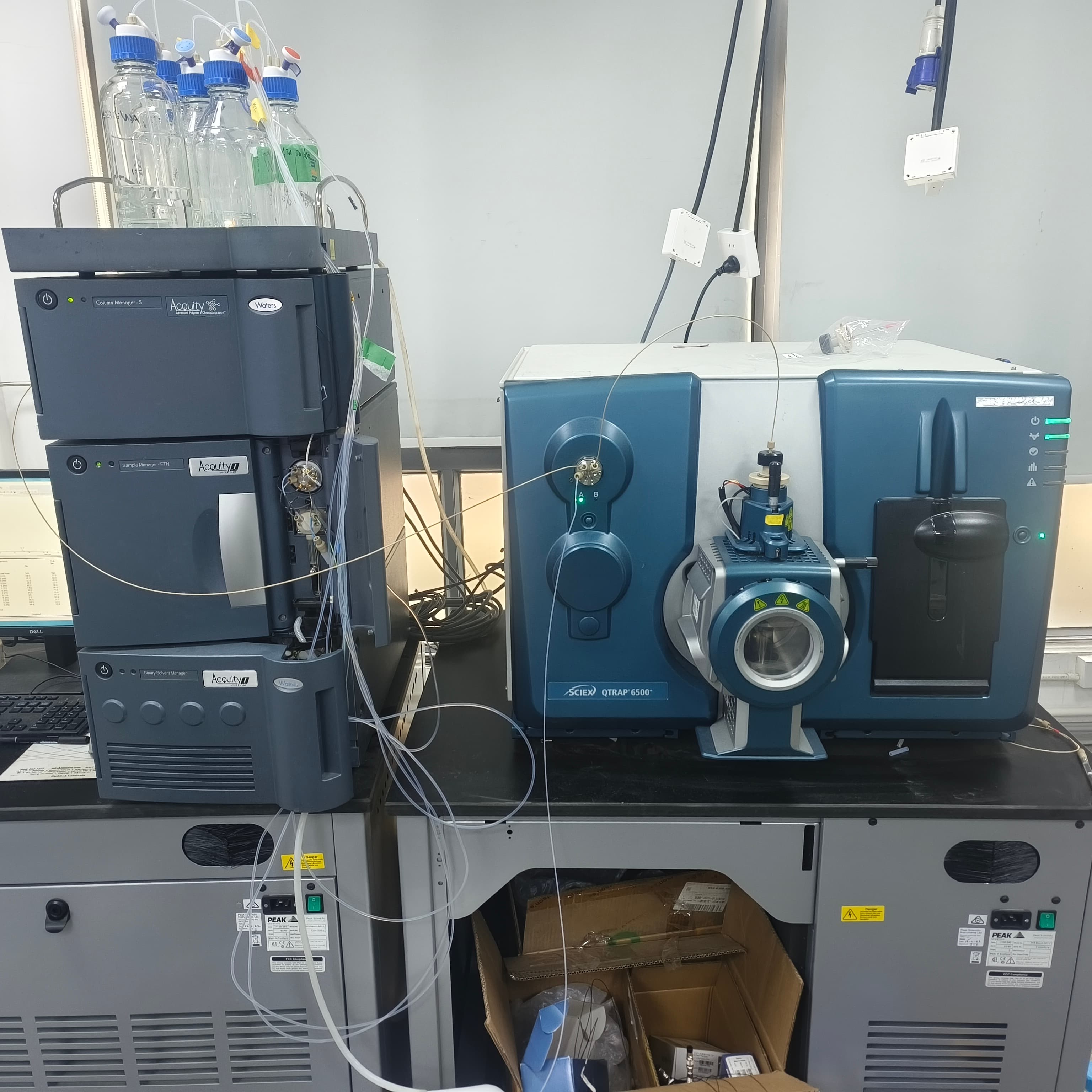

When integrated, this LC-MS platform forms an indispensable tool for 21st-century laboratories. In drug discovery, the system enables high-throughput pharmacokinetic (PK) studies, quantifying drugs and metabolites in plasma with unparalleled precision. In clinical diagnostics, it is used for newborn screening and steroid hormone profiling. For environmental and food safety labs, it provides the low detection limits needed for pesticide residue and contaminant monitoring. The combination of Waters' chromatographic excellence and AB Sciex's detection power ensures that even the most challenging compounds—those with poor ionization efficiency or those buried in complex biological matrices—can be accurately and reliably quantified, making this pairing a cornerstone of modern quantitative bioanalysis.
