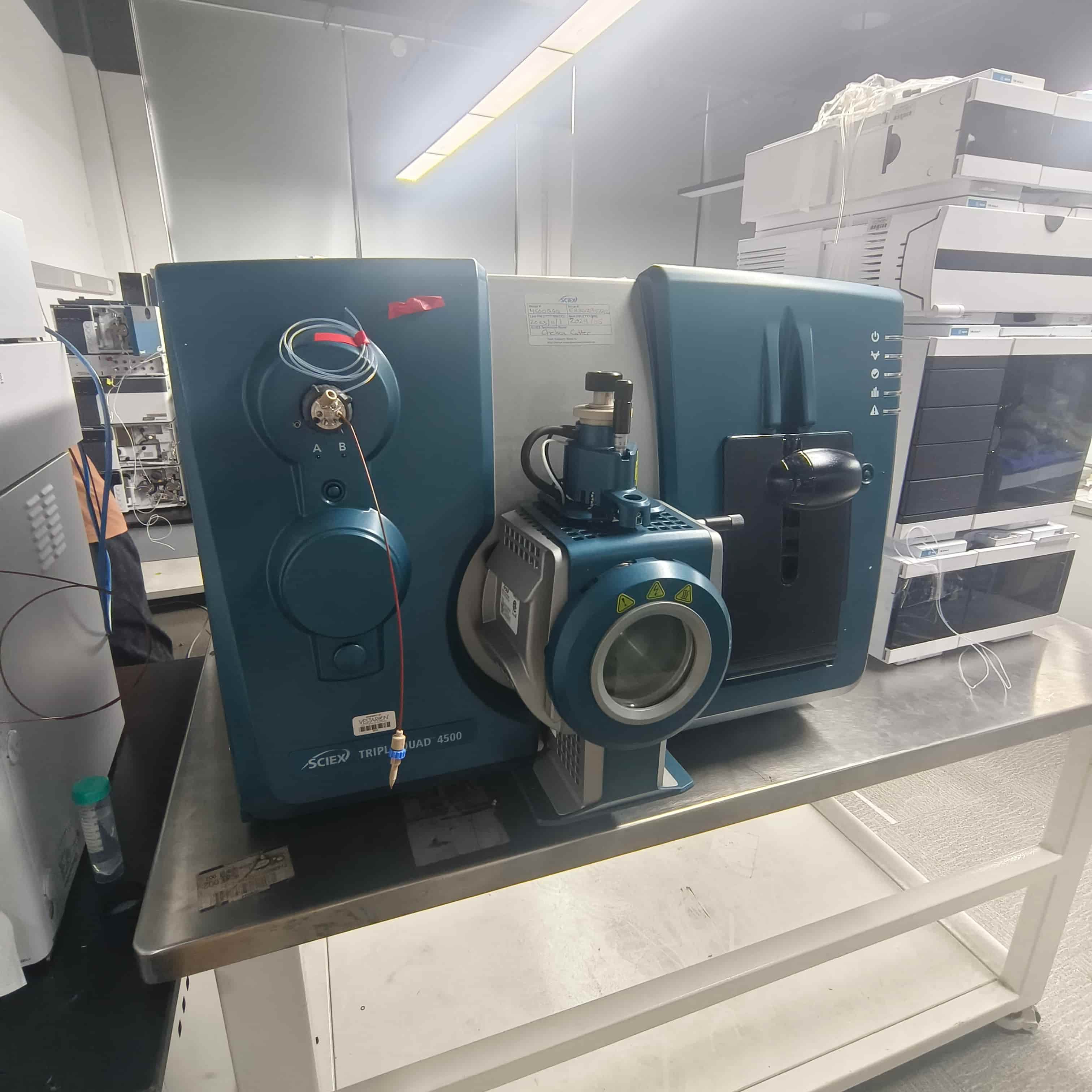

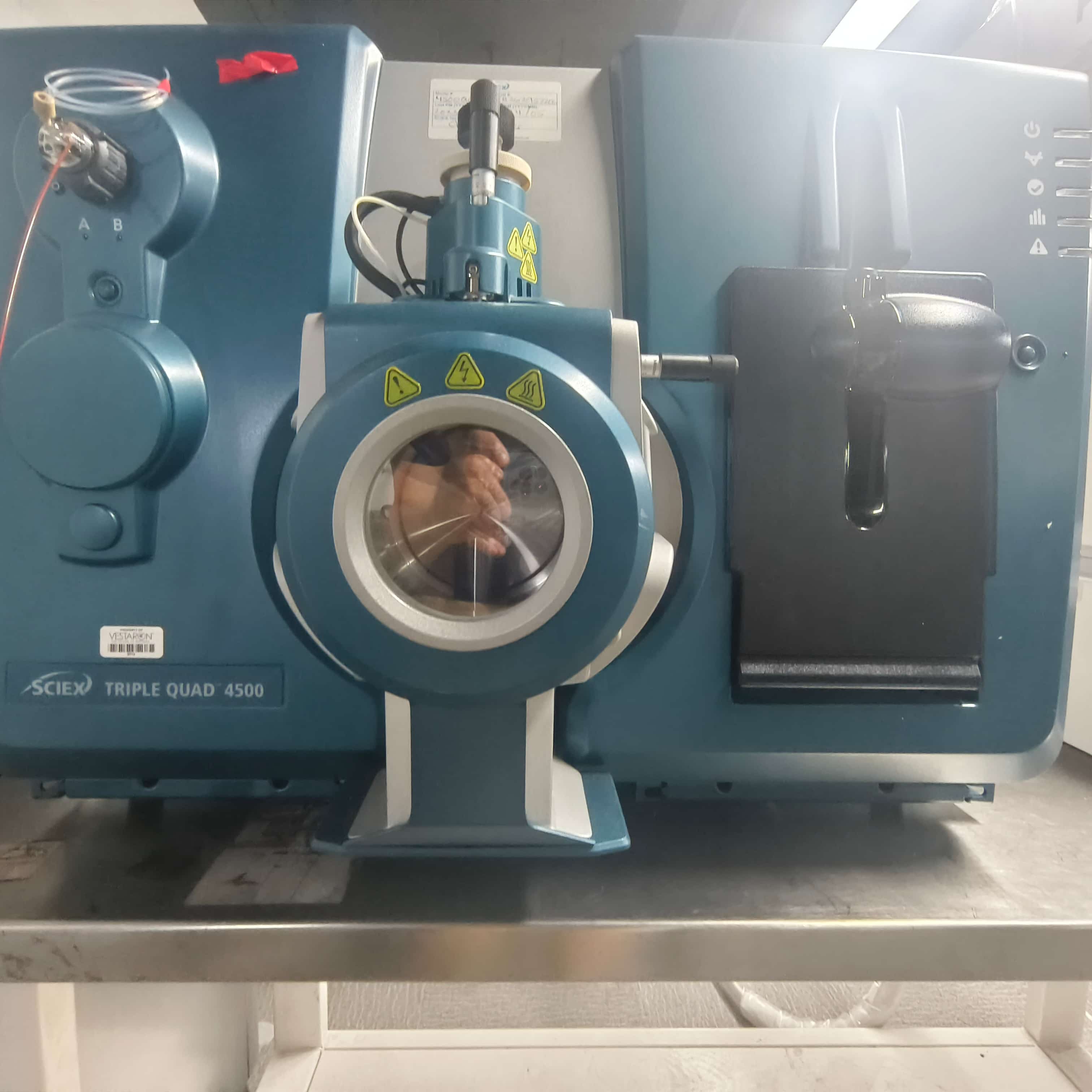

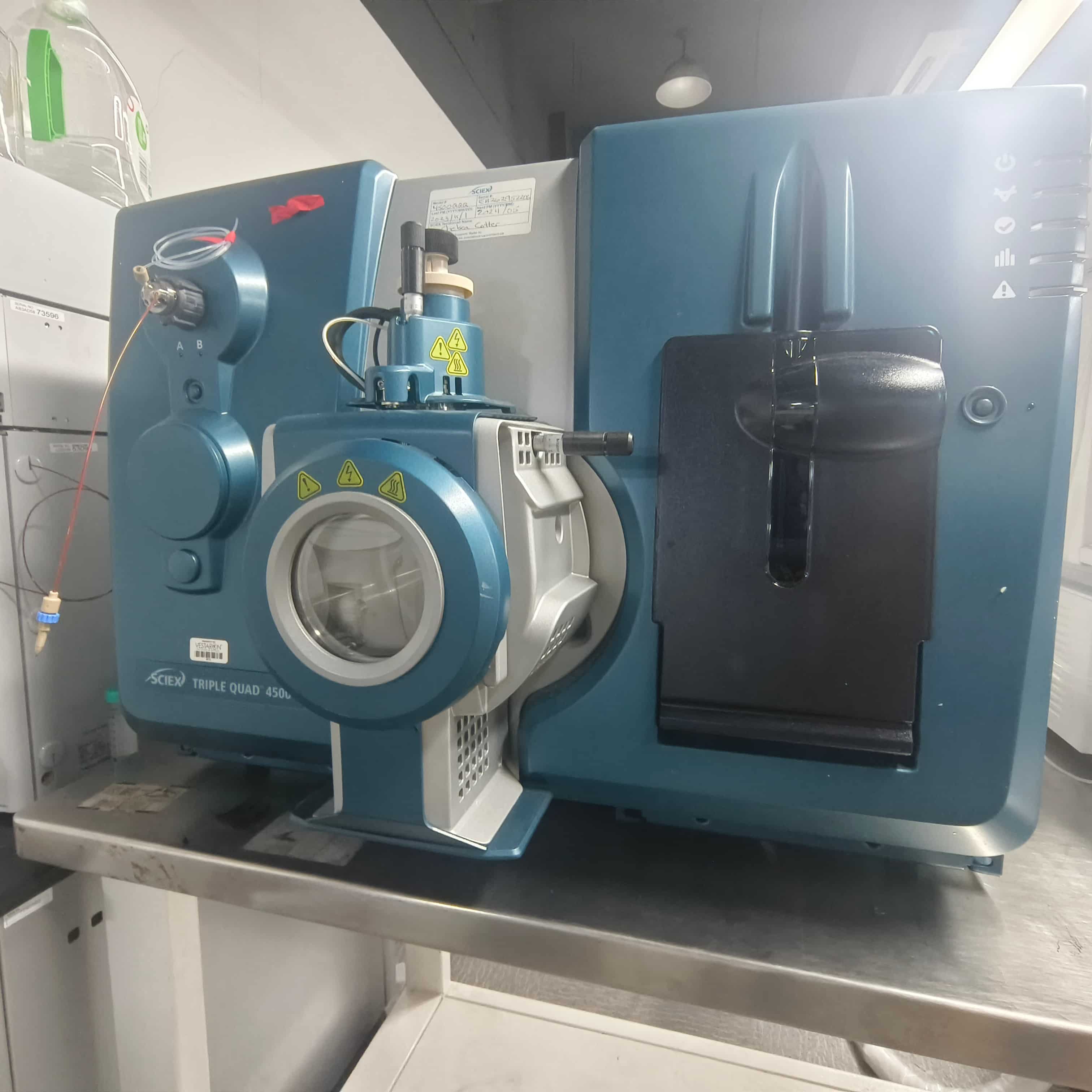

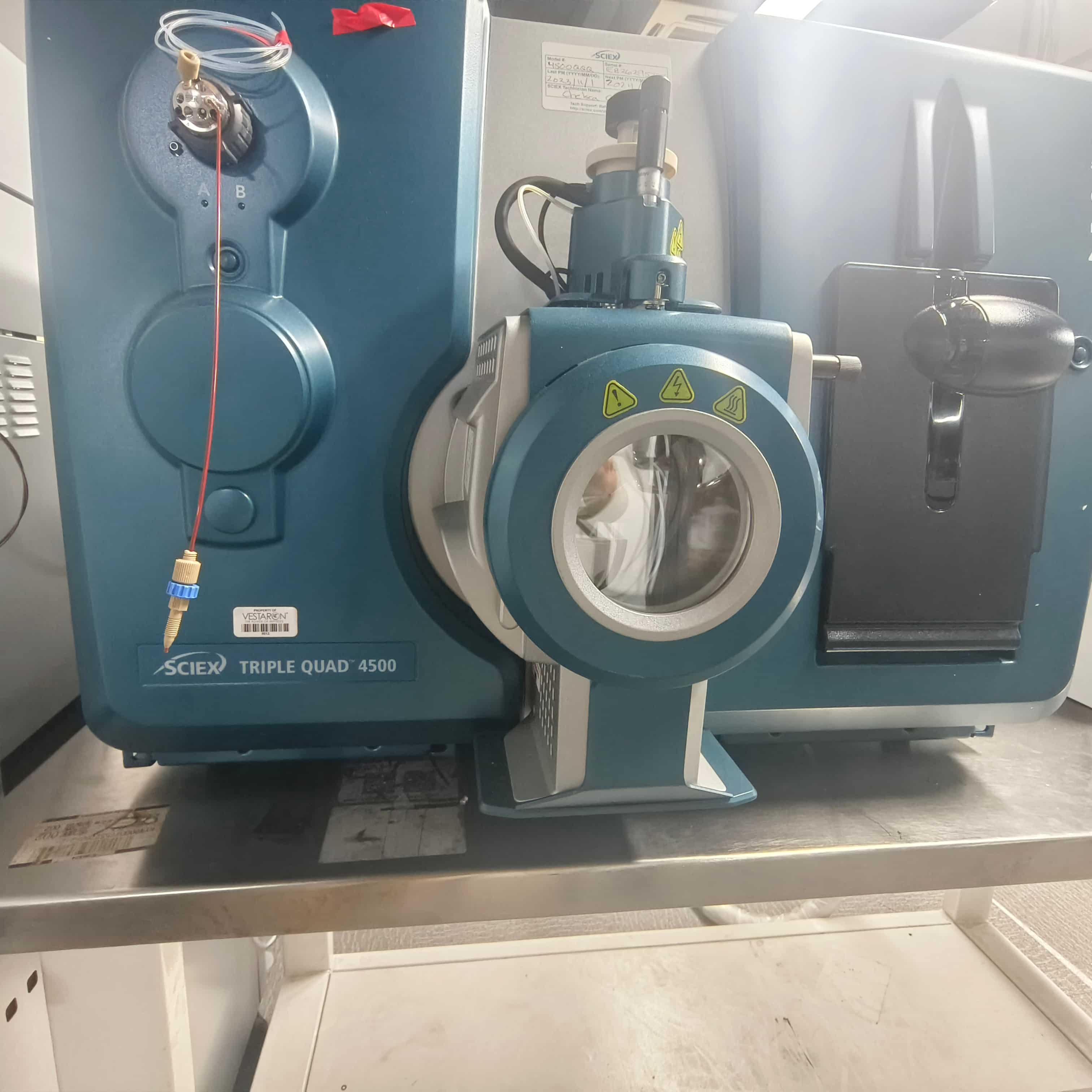

Used AB Sciex 4500 LC-MS/MS system

The AB Sciex 4500 LC-MS/MS system represents a benchmark in triple quadrupole mass spectrometry, renowned for its exceptional quantitative robustness and high-throughput capabilities. As a workhorse instrument in pharmaceutical, clinical, and environmental laboratories, it delivers the reliability required for demanding 24/7 operation, making it a particularly compelling choice in the used equipment market where proven durability and low cost of ownership are paramount. The system is engineered to handle complex matrices with high reproducibility, offering a balance of sensitivity, speed, and operational simplicity that has stood the test of time.

At the core of the 4500's performance is its Turbo V™ ion source​ and QJet™ ion guide technology. The Turbo V source features a dual orthogonal spray design that minimizes contamination and supports both ESI and APCI ionization with quick probe interchangeability, accommodating flow rates from micro-LC to standard HPLC. This is coupled with the QJet ion guide, which utilizes a large-bore design and efficient RF focusing to maximize ion transmission into the vacuum chamber, significantly boosting signal intensity for trace-level analytes. The heart of the system is the LINAC® collision cell, a curved, linear acceleration design that not only speeds ion transit (enabling fast scanning) but also effectively deflects neutral noise and contaminants, resulting in exceptionally clean backgrounds and minimal cross-talk between samples. Detection is handled by the AcQuRate™ pulse counting detector, which provides a wide dynamic range of over five orders of magnitude and excellent precision at low concentrations, which is critical for accurate pharmacokinetic and biomarker studies.

The 4500 platform is specifically designed for speed and efficiency. With a scan speed of up to 12,000 Da/sec and a polarity switching time of less than 25 milliseconds, it is perfectly matched to modern UHPLC systems, ensuring that even the narrowest chromatographic peaks are adequately sampled with multiple data points for reliable integration. Its MRM (Multiple Reaction Monitoring)​ capability is a standout feature, allowing for the simultaneous quantification of hundreds of compounds in a single run with dwell times as low as 1 ms. This makes it ideal for high-throughput screening applications in food safety (pesticide residues) and clinical toxicology. The system is controlled by Analyst® software, which provides an intuitive interface for method setup, data acquisition, and processing. Features like Scheduled MRM™ allow for intelligent time-slicing of transitions, maximizing dwell time and sensitivity even in complex multi-analyte panels. For labs acquiring a used system, the software's stability and extensive global user base are significant advantages for troubleshooting and method transfer.

In the context of the used equipment market, the AB Sciex 4500 presents an outstanding value proposition. It is widely regarded as one of the most serviceable and reliable platforms in its class, with a robust vacuum system and readily available consumables (ion sources, detectors). Many used units have been well-maintained in regulated environments (GMP/GLP), and their service histories are often well-documented. When evaluating a used 4500, key points of inspection include the operational hours of the turbomolecular pump, the condition of the collision cell (for signs of erosion or contamination), and the performance of the electron multiplier detector. A well-characterized used 4500 can deliver performance nearly equivalent to a new system at a fraction of the cost, making it an excellent entry-point for labs establishing core LC-MS capabilities or expanding their throughput capacity.

The versatility of the AB Sciex 4500 is demonstrated by its broad application across multiple industries. In pharmaceutical and CRO​ settings, it is the gold standard for bioanalytical method development, drug metabolism (DMPK), and high-throughput ADME studies. In clinical research, it is used for precise quantification of hormones, vitamins, and drugs of abuse in complex biological matrices like plasma and urine. Environmental and food safety labs​ rely on its high sensitivity for detecting pesticide residues, veterinary drug residues, and emerging contaminants (e.g., PFAS) at parts-per-trillion levels. For any laboratory considering a used LC-MS/MS system, the AB Sciex 4500 offers a proven, cost-effective platform that continues to deliver industrial-grade performance years after its initial release.
