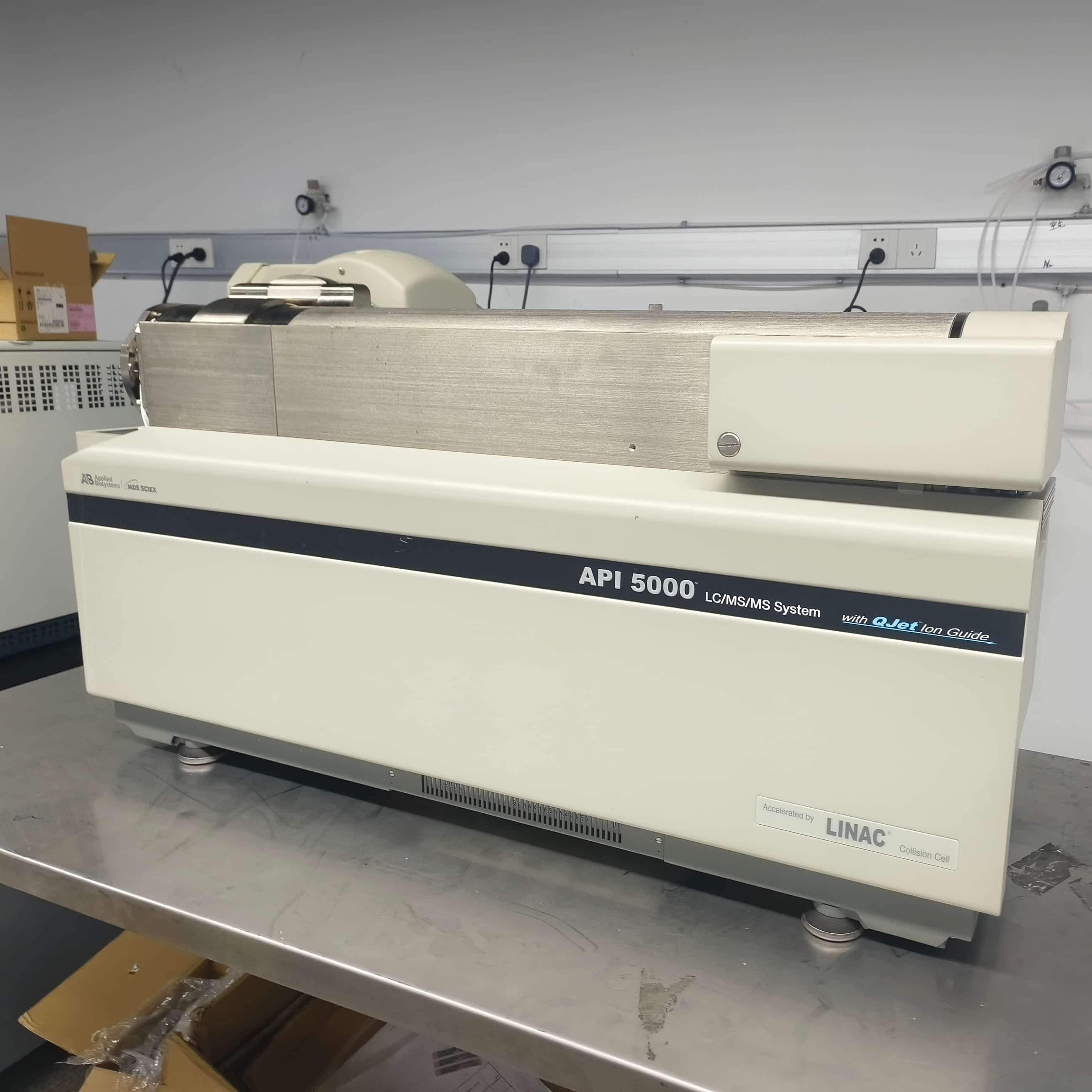

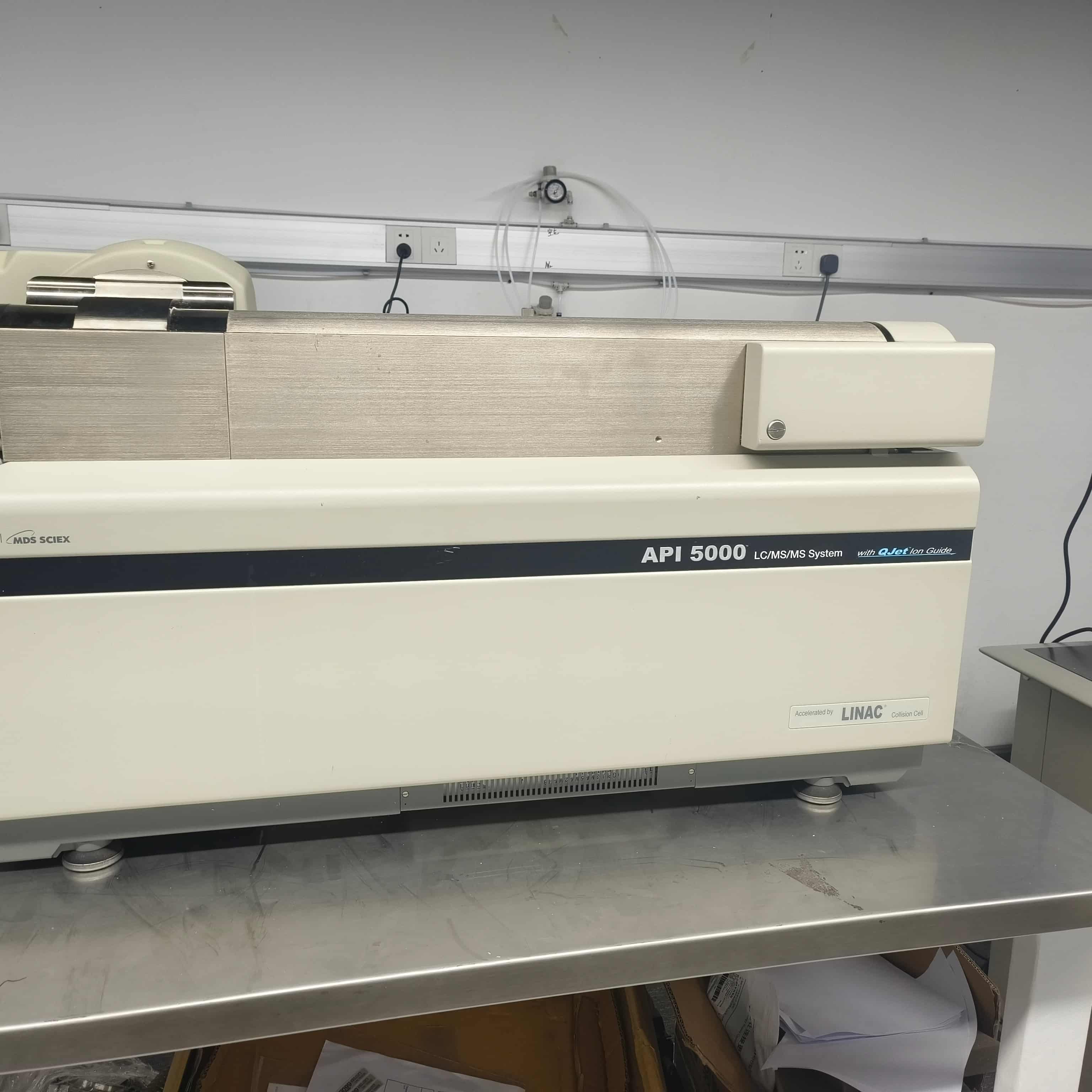

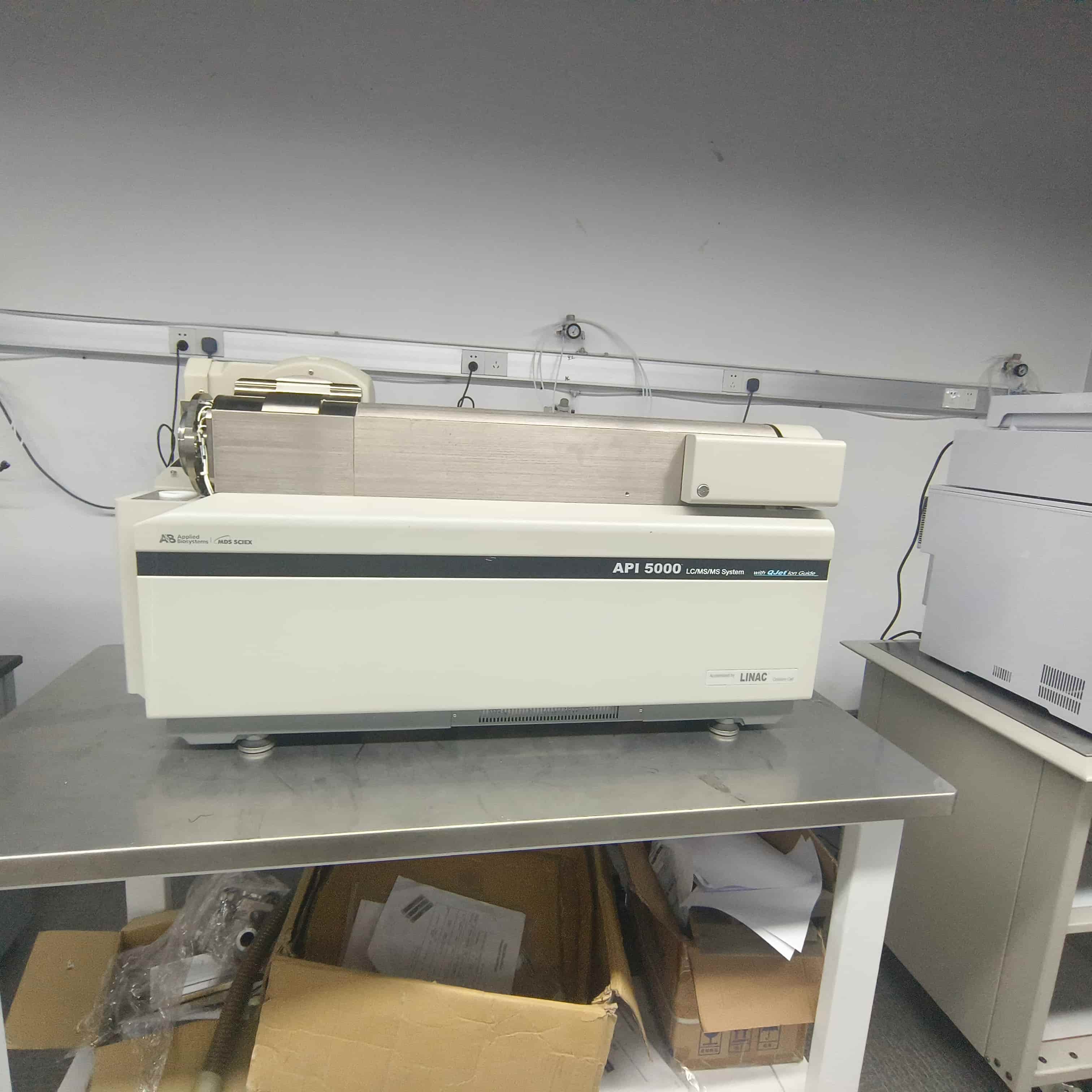

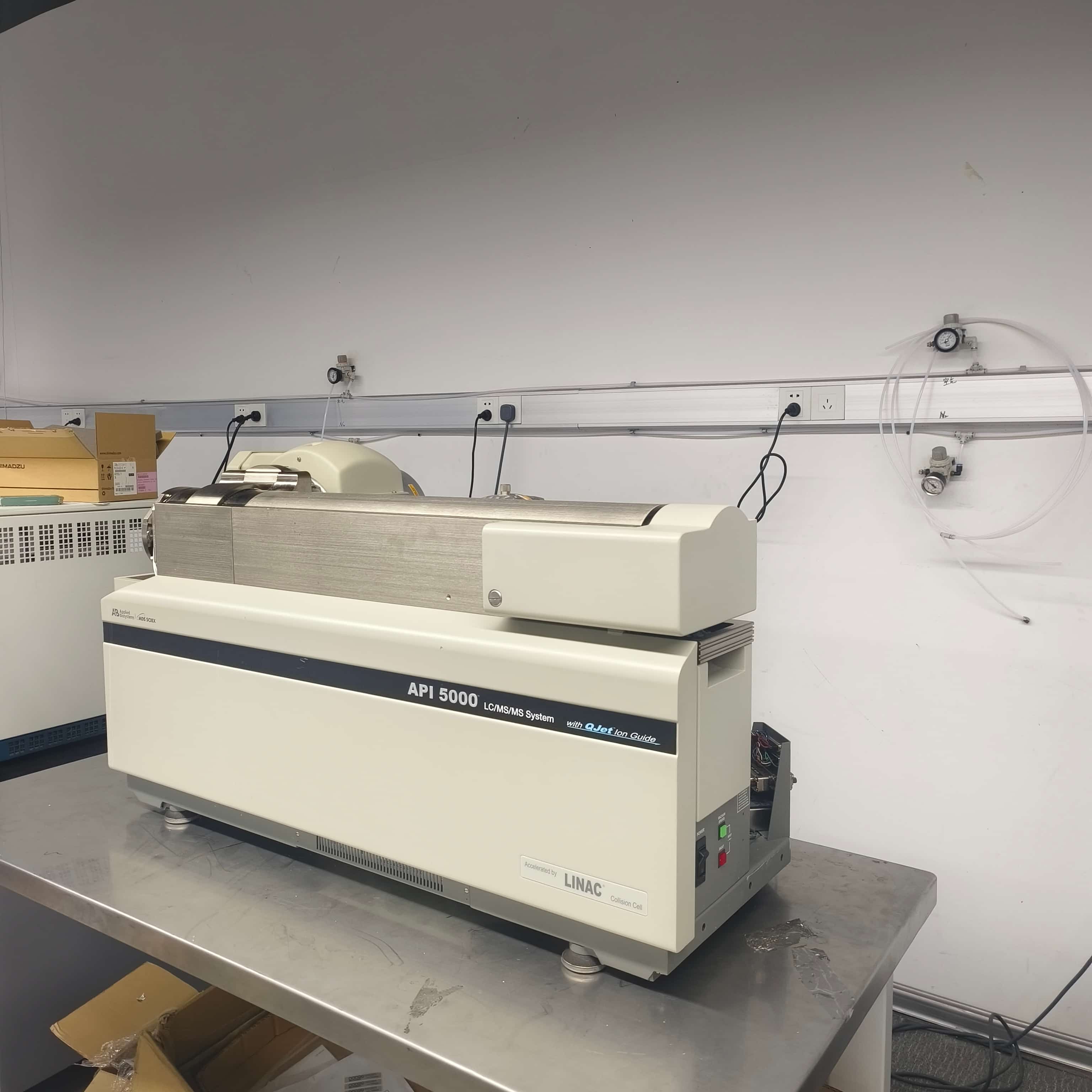

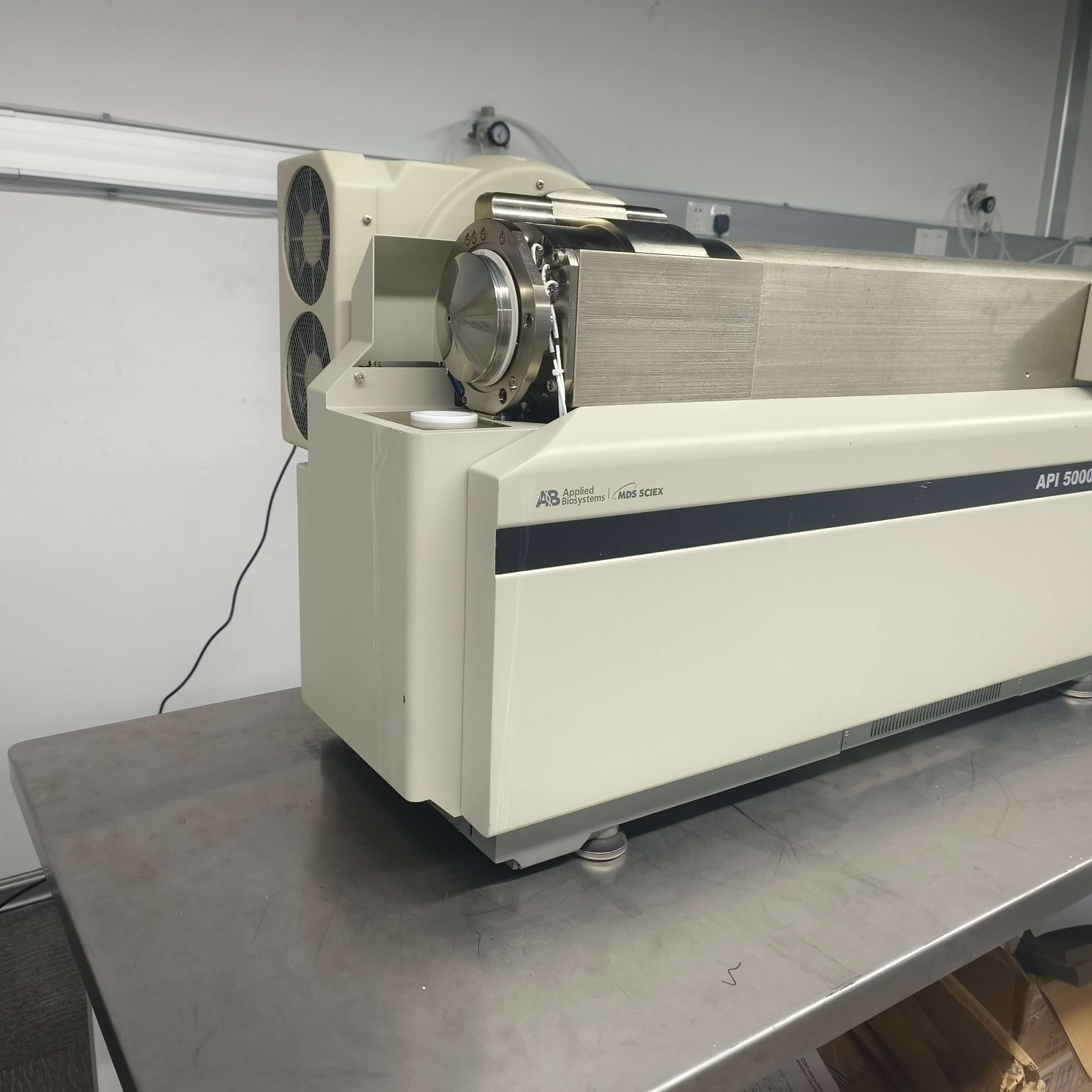

Used AB Sciex API 5000 LC-MS/MS system

The AB Sciex API 5000 LC-MS/MS system represents a significant evolutionary step in the lineage of AB Sciex triple quadrupole mass spectrometers. Positioned between the workhorse API 4000 and the later high-end 6500 series, the API 5000 was engineered specifically to deliver a substantial leap in sensitivity and robustness for quantitative bioanalysis. It remains a highly valued platform in the used and refurbished market for laboratories requiring industrial-grade performance for trace-level quantification in complex matrices.

Instrument Overview and Design Philosophy

The API 5000 was designed as a high-sensitivity triple quadrupole LC-MS/MS system to meet the demanding requirements of modern drug discovery and development (DMPK/ADME), clinical research, and environmental testing. Its architecture builds upon the proven foundation of the API 4000 but incorporates critical innovations—most notably the QJet™ ion guide​ and enhanced ion optics—to achieve a documented 3- to 5-fold improvement in signal-to-noise ratio over its predecessor. This makes it particularly well-suited for detecting low-abundance analytes in challenging samples like plasma, urine, and tissue homogenates.

Key Technical Specifications and Performance

The performance of the API 5000 is driven by a series of proprietary technologies that optimize ion transmission from source to detector.

Turbo V Ion Source with QJet Technology:​ This combination is the cornerstone of the API 5000's enhanced sensitivity. The Turbo V source provides robust ionization across a wide flow range, while the QJet ion guide acts as an ion funnel at atmospheric pressure, effectively capturing and focusing ions before they enter the vacuum chamber. This design significantly reduces ion loss, leading to higher signals and lower detection limits.

LINAC Collision Cell:​ The system retains the patented LINAC collision cell, a curved, high-pressure cell that uses DC potentials to accelerate ions. This not only increases ion transmission efficiency but also minimizes cross-talk between rapid MRM transitions, which is essential for high-throughput multi-analyte panels.

Speed and Throughput:​ With a scan speed of up to 2,400 amu/sec and fast polarity switching, the API 5000 is well-matched to UHPLC systems, ensuring that narrow chromatographic peaks are adequately sampled with multiple data points for reliable integration.

Software and Data Processing

The API 5000 is operated using the industry-standard Analyst® Software, which provides an intuitive interface for method setup, data acquisition, and processing. For quantitative workflows, the MultiQuant™​ software module offers automated peak integration, calibration curve fitting, and generation of regulatory-compliant reports (21 CFR Part 11). The system also supports automated optimization routines (e.g., iCAL) for collision energy and other parameters, simplifying method development.

Primary Applications

The API 5000 excels in applications where the highest level of quantitative precision is required:

• Pharmaceutical & Biopharma:​ It is a gold standard for bioanalytical method development, pharmacokinetic (PK) studies, and metabolite identification, capable of detecting drugs at sub-picogram levels.

• Clinical Research:​ Ideal for therapeutic drug monitoring (TDM), steroid profiling, vitamin D analysis, and newborn screening.

• Food Safety & Environmental:​ Used for high-sensitivity multi-residue analysis of pesticides, veterinary drugs, and contaminants (e.g., PFAS) at parts-per-trillion levels.

Value in the Used Equipment Market

For laboratories considering a used API 5000, the value proposition is compelling:

• Proven Reliability:​ The API 5000 is renowned for its ruggedness and ability to operate 24/7 in regulated environments. Many used units come from well-maintained GLP/GMP labs.

• Cost-Effectiveness:​ A refurbished API 5000 can deliver performance that is still highly competitive with newer entry-level systems, but at a significantly lower cost of ownership.

• Serviceability:​ As a widely adopted platform, replacement parts, consumables, and technical expertise are readily available globally.

In summary, the AB Sciex API 5000 is a mature, high-performance triple quadrupole platform that continues to be a strategic asset for any laboratory focused on high-sensitivity quantitative analysis. Its combination of proven hardware, superior sensitivity over the API 4000, and robust software ecosystem makes it an excellent long-term investment in the used instrument market.
