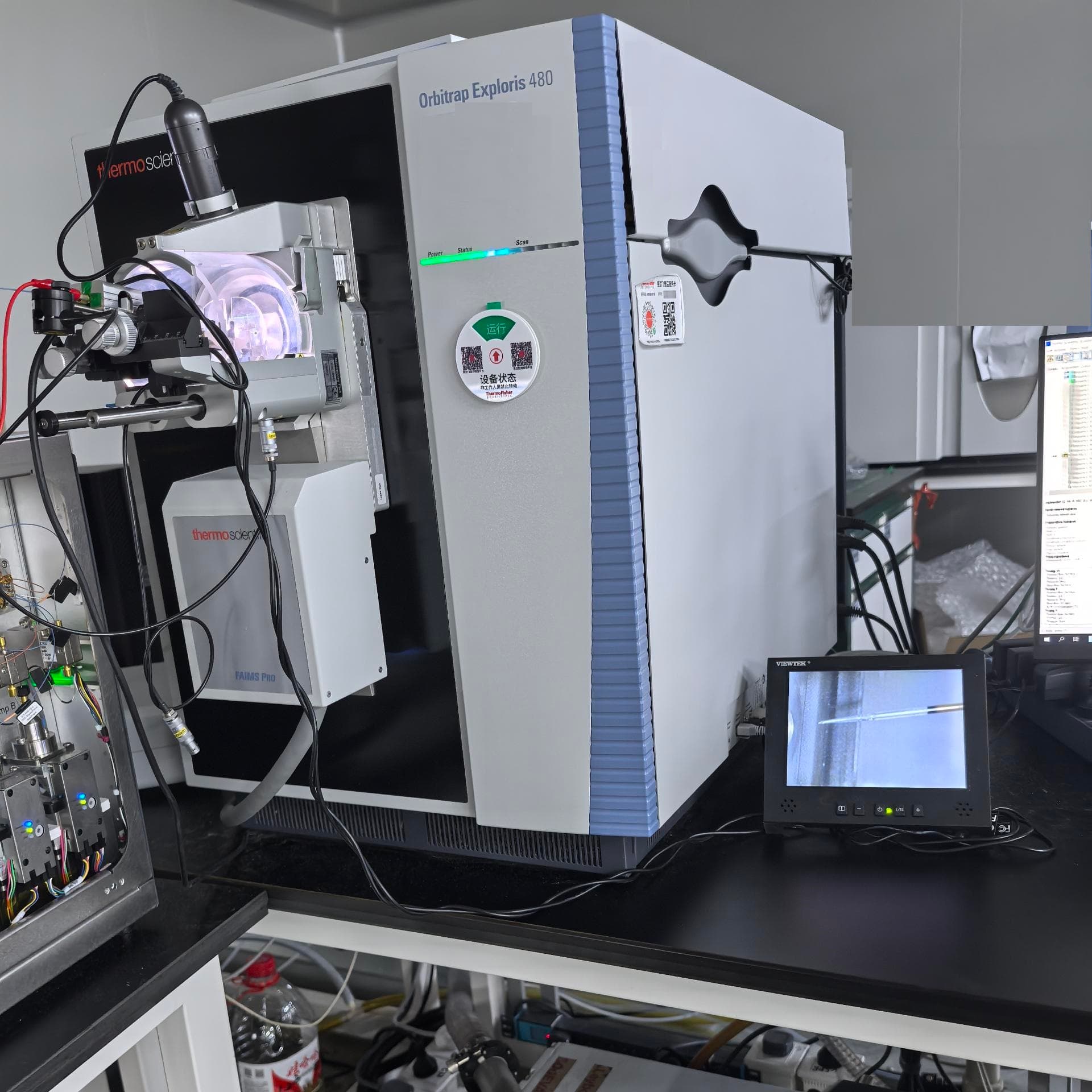

Used Thermo Scientific™ Orbitrap Exploris™ 480 Mass Spectrometer

The Thermo Scientific™ Orbitrap Exploris™ 480 Mass Spectrometer​ represents a pinnacle in high-resolution accurate-mass (HRAM) instrumentation, engineered to deliver uncompromising performance for the most demanding proteomics, metabolomics, and biopharmaceutical applications. As a flagship model in the Orbitrap Exploris series, it combines a high-selectivity quadrupole front-end with an advanced high-field Orbitrap mass analyzer, achieving a maximum resolution of 480,000​ at m/z 200. This instrument is designed not only for raw analytical power but also for exceptional robustness and ease of use, making high-end mass spectrometry accessible to a broader range of researchers.

Key Technical Specifications and Performance

The core strength of the Orbitrap Exploris 480 lies in its ability to provide deep, confident characterization of complex samples. Its specifications set a high bar for the industry:

• Ultra-High Resolution: The high-field Orbitrap analyzer delivers a resolution of up to 480,000 (at m/z 200), enabling the separation of closely spaced isobaric ions and precise determination of elemental composition.

• Exceptional Mass Accuracy: Utilizing the EASY-IC internal calibration source, the instrument maintains mass accuracy better than 1 ppm RMS​ for extended periods (up to five days), ensuring reliable compound identification without frequent recalibration.

• Rapid Polarity Switching: It features a polarity switching speed of less than 1 second​ for a full cycle (positive to negative mode), crucial for high-throughput screening and comprehensive metabolomic profiling.

• Extended Mass Range: The standard mass range covers m/z 40–6000, which can be optionally extended to m/z 8000 for biopharma applications, facilitating the analysis of large biomolecules and intact proteins.

• High Sensitivity: It offers industry-leading sensitivity, with detection limits down to 50 fg​ of reserpine on-column (with S/N >100 in MS/MS mode), making it suitable for trace-level analysis and single-cell proteomics.

Instrument Design and Operational Advantages

The Exploris 480 is built on a next-generation architecture that prioritizes both performance and user experience. Its design incorporates several innovative features to maximize uptime and data quality:

• Robust Ion Optics: The ion path includes a curved flatapole and a multi-electrode ion routing multipole (IRM) that significantly reduces contamination and improves ion transmission efficiency. This design enhances instrument durability and minimizes maintenance intervals.

• Compact Footprint: Despite its high performance, the system features a relatively compact physical footprint, achieved through optimized vacuum system design (single turbo pump with six-stage pumping) and integrated electronics.

• Intelligent Data Acquisition: The instrument supports advanced scanning modes such as Data-Independent Acquisition (DIA), BoxCar, and tSIM-MSX​ (multiplexed targeted SIM). These modes, combined with intelligent precursor selection algorithms, maximize the depth of coverage in complex samples.

• FAIMS Pro Compatibility: When equipped with the optional FAIMS Pro​ ion mobility interface, the system gains an additional dimension of separation, reducing sample complexity and chemical noise to further boost sensitivity and quantitative accuracy in proteomic workflows.

Application Workflows and Software Ecosystem

The versatility of the Orbitrap Exploris 480 is demonstrated across a wide spectrum of life science research areas. It is particularly dominant in quantitative proteomics and biopharma characterization:

• Proteomics: It is a workhorse for both discovery (DDA) and targeted (PRM, DIA) proteomics. Features like the TurboTMT​ algorithm and Precursor Fit Filter​ ensure high-quality quantification in TMT (Tandem Mass Tag) and label-free experiments, providing deep proteome coverage.

• Metabolomics: The high resolution and fast scanning capabilities make it ideal for untargeted metabolomics, allowing researchers to profile thousands of small molecules with confident annotation.

• Biopharmaceuticals: For monoclonal antibodies and other biologics, the instrument provides detailed characterization of post-translational modifications (PTMs), glycan profiles, and sequence variants.

• User-Friendly Software: The system is controlled by the unified Thermo Scientific™ Tune​ and Xcalibur™​ or Freestyle​ software suite, which offers pre-configured method templates for common applications. This simplifies method development and ensures consistent results across different user skill levels.

In summary, the Thermo Scientific Orbitrap Exploris 480 Mass Spectrometer stands as a testament to the evolution of Orbitrap technology. It successfully bridges the gap between elite-level performance and operational simplicity, offering researchers a powerful tool to push the boundaries of what is possible in molecular analysis. Its combination of speed, sensitivity, and stability makes it an indispensable asset in modern analytical laboratories focused on cutting-edge biological and pharmaceutical research.
