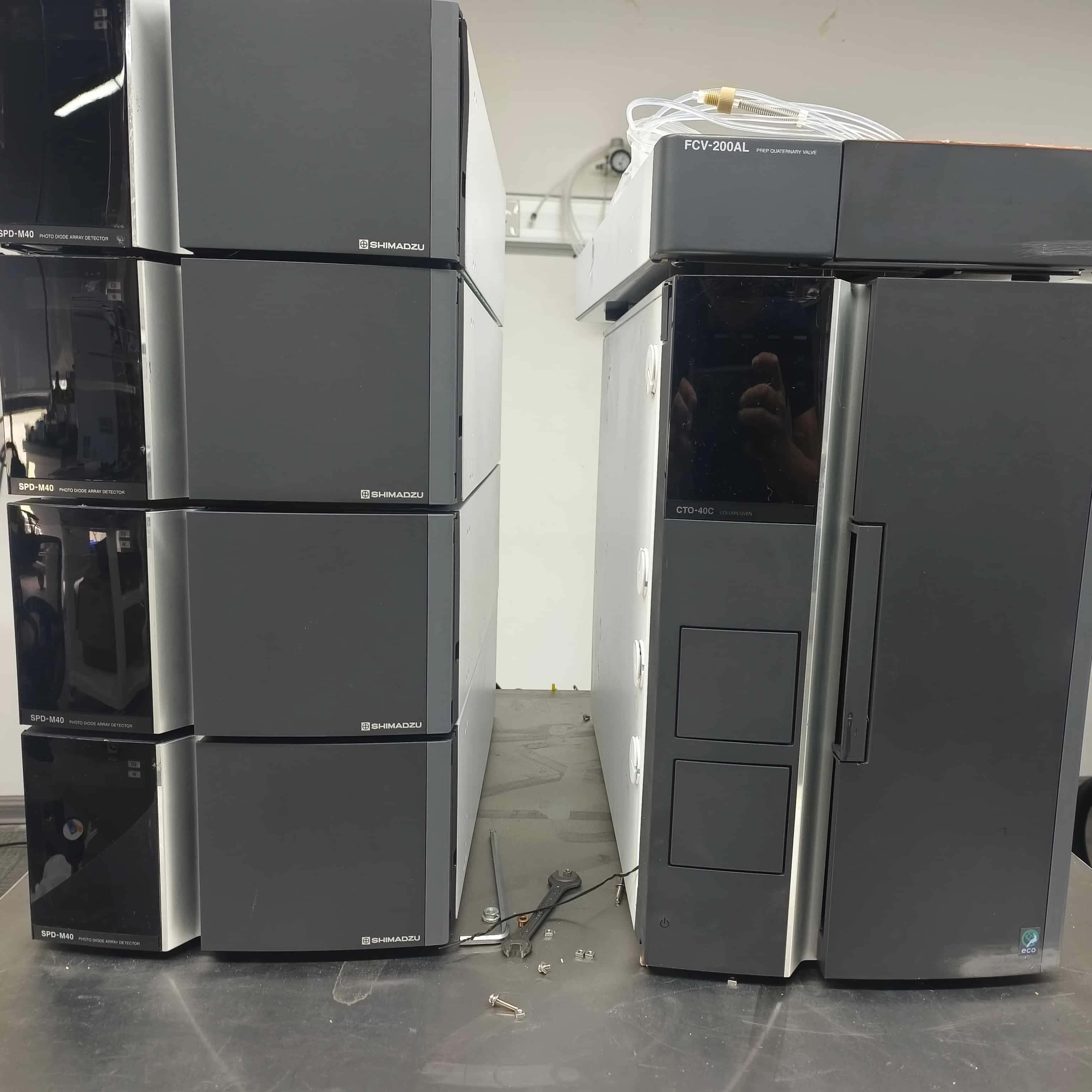

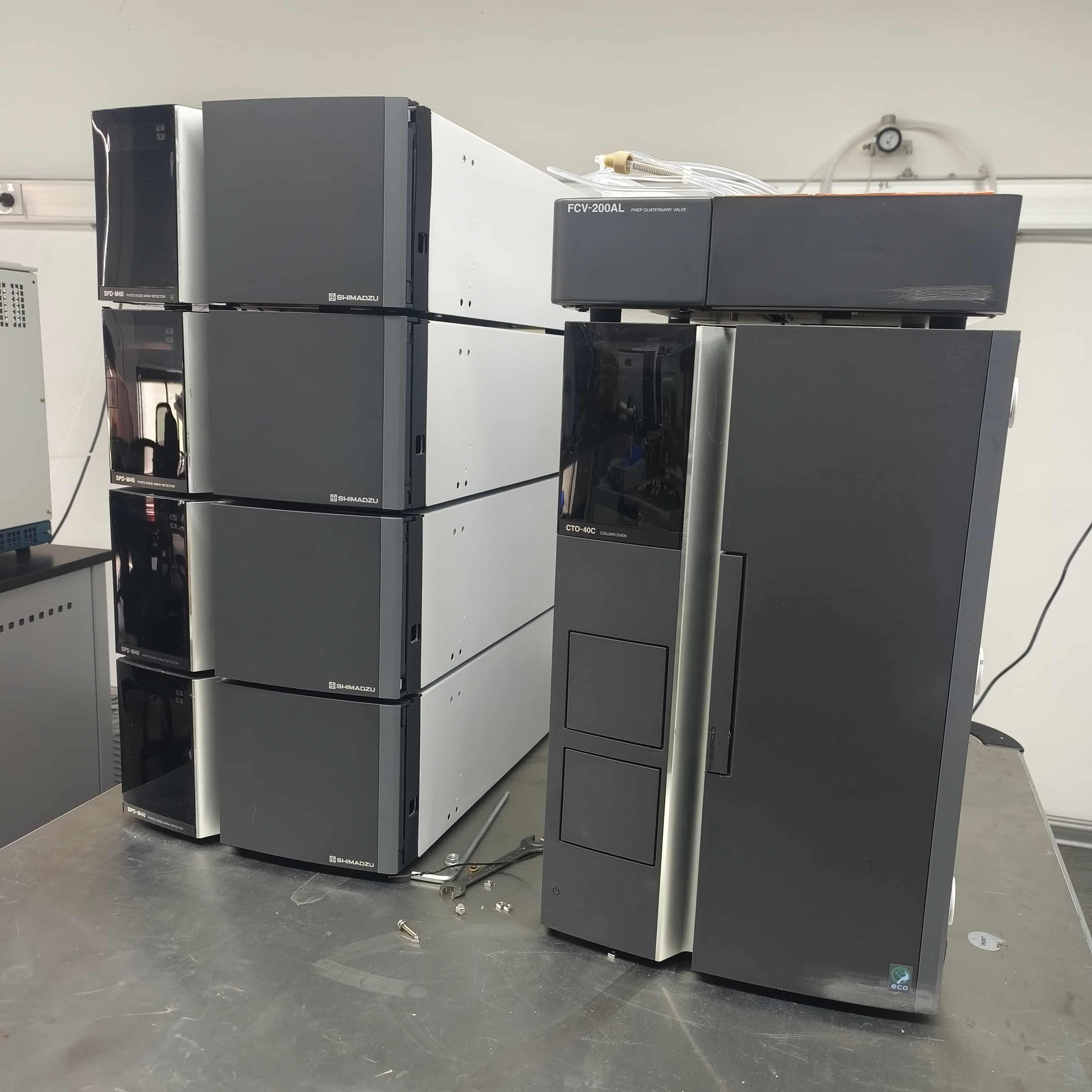

Shimadzu Prominence LC-40A HPLC System

The Shimadzu Prominence LC-30A HPLC System (also known as Prominence Plus LC-30A) is a flagship ultra-high-performance liquid chromatography (UHPLC) platform engineered to deliver maximum throughput, sensitivity, and reproducibility for the most demanding pharmaceutical, bioanalytical, and quality control applications. It bridges the gap between conventional HPLC robustness and cutting-edge UHPLC performance, offering a modular architecture that supports configurations from high-pressure binary systems to flexible quaternary setups.

System Architecture & Core Specifications

The system’s performance is defined by its high-pressure fluidics, advanced autosampler, and precise thermal management, all controlled via Shimadzu’s integrated software platform.

• Solvent Delivery System (LC-30AD): The core of the system is a high-pressure binary pump capable of operating at up to 130 MPa​ (approx. 19,000 psi), enabling the full utilization of sub-2-micron particle columns for superior separation efficiency. It features a parallel dual-plunger design with an extremely low internal volume (approx. 42 µL) and a built-in seal wash mechanism. The pump delivers a wide flow rate range from 0.0001 to 5.0000 mL/min (with full pressure up to 3 mL/min), ensuring precise gradient formation and compositional accuracy essential for fast method scouting and robust LC/MS coupling.

• Autosampler (SIL-30AC): Designed for ultra-low carryover and high productivity, the SIL-30AC autosampler offers an injection volume range from 0.1 µL to 150 µL (expandable to 2000 µL). Its key innovation is a four-solvent needle wash system​ that reduces cross-contamination to levels below 0.0015%, critical for sensitive bioanalytical assays and LC-MS/MS applications. With optional rack changers, it can handle over 4,600 samples in a single batch. Features like "overlap injection" (starting the next cycle while the previous run is ongoing) and automated sample pre-treatment (dilution, derivatization) drastically reduce cycle times and enhance workflow efficiency.

• Column Oven (CTO-30A/AC): The thermally insulated column compartment provides precise temperature control from sub-ambient (with optional cooling) up to 150°C. It incorporates a micro-volume preheater and forced-air circulation to maintain a uniform temperature profile (±0.1°C), which is vital for achieving consistent retention times in high-speed UHPLC methods and for analyzing thermally labile compounds.

• Detection Suite: The system is compatible with Shimadzu’s full range of high-speed detectors. The SPD-M30 photodiode array detector (PDA) offers a fast acquisition rate of up to 500 Hz​ for accurately capturing narrow UHPLC peaks. It also seamlessly integrates with fluorescence (RF-20A), refractive index (RID-20A), and various mass spectrometers (LC-MS) for comprehensive sample characterization.

Key Performance & Operational Advantages

• UHPLC-Grade Speed and Resolution: The 130 MPa pressure ceiling, combined with low-dispersion fluidics, allows for analysis times up to 5-10 times faster than conventional HPLC without sacrificing peak capacity. This is essential for high-throughput screening and method development in drug discovery and metabolomics.

• Software & Compliance: The system is controlled by Shimadzu’s LabSolutions​ software platform, which provides full instrument control, data processing, and robust compliance features for GLP/GMP environments. This includes comprehensive audit trails, user management, and electronic signature capabilities, making it suitable for regulated laboratories.

• Application Versatility: The LC-30A excels across a broad spectrum of high-demand analyses. In pharmaceutical R&D and QC, it is used for assay and impurity profiling of active pharmaceutical ingredients (APIs) and bioanalytical method validation. In food safety and environmental monitoring, its high sensitivity makes it ideal for detecting trace-level contaminants like pesticides and persistent organic pollutants (POPs) at ppb levels.

In summary, the Shimadzu Prominence LC-30A HPLC System is a versatile and robust analytical platform that combines extreme pressure capabilities with intelligent automation features. Its high-pressure pump, ultra-low carryover autosampler, and flexible detection options make it an indispensable tool for modern laboratories focused on precision, productivity, and data integrity in both research and regulated environments.
