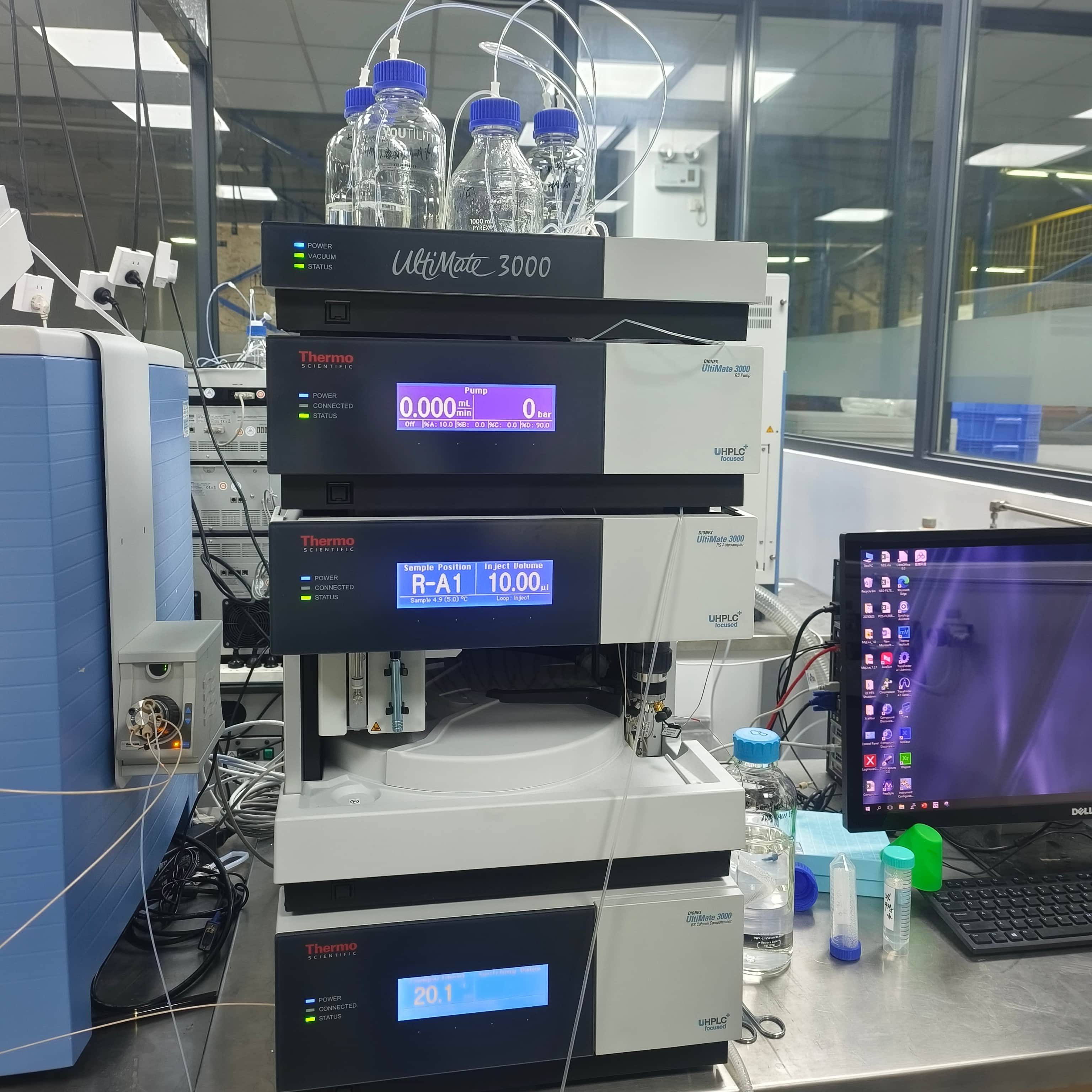

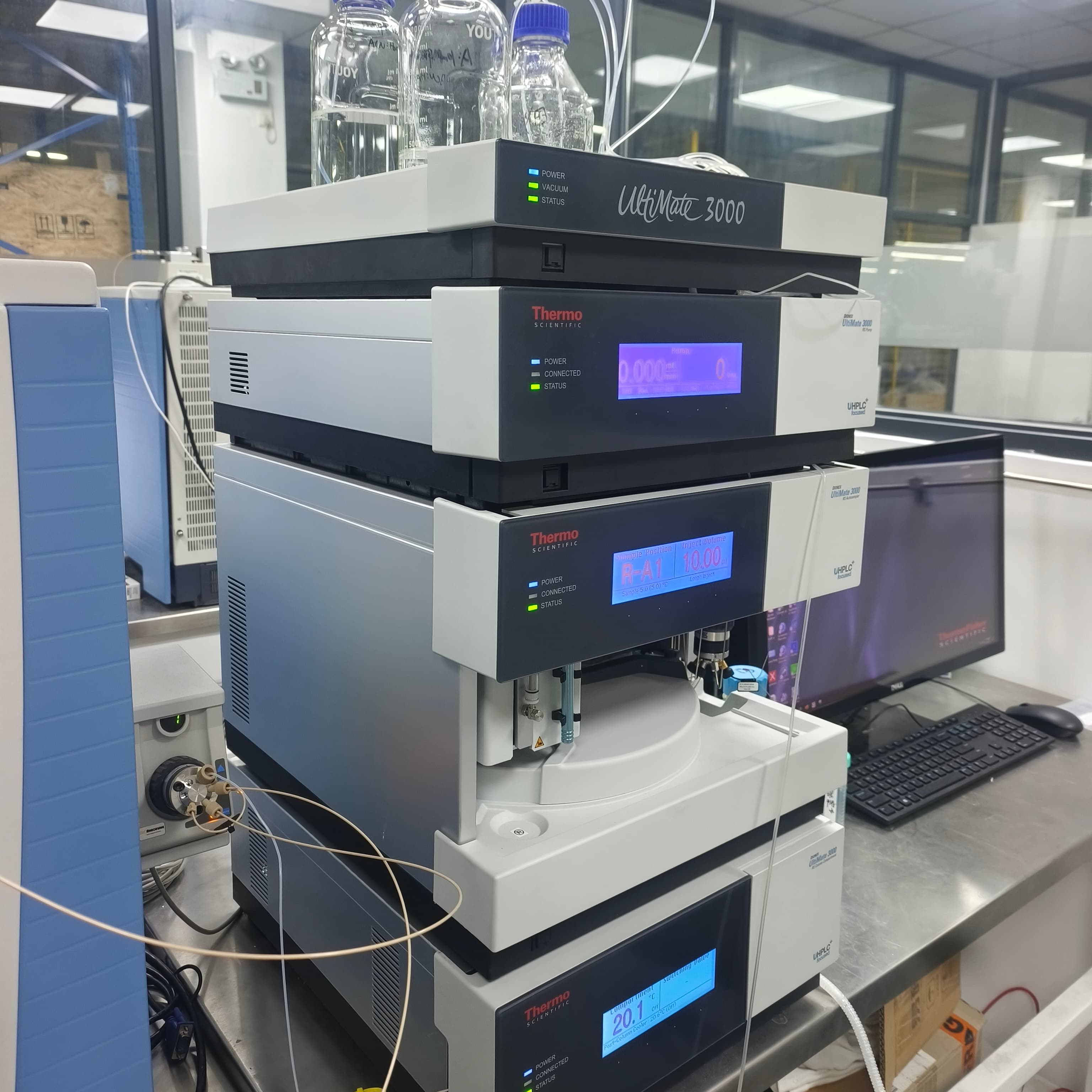

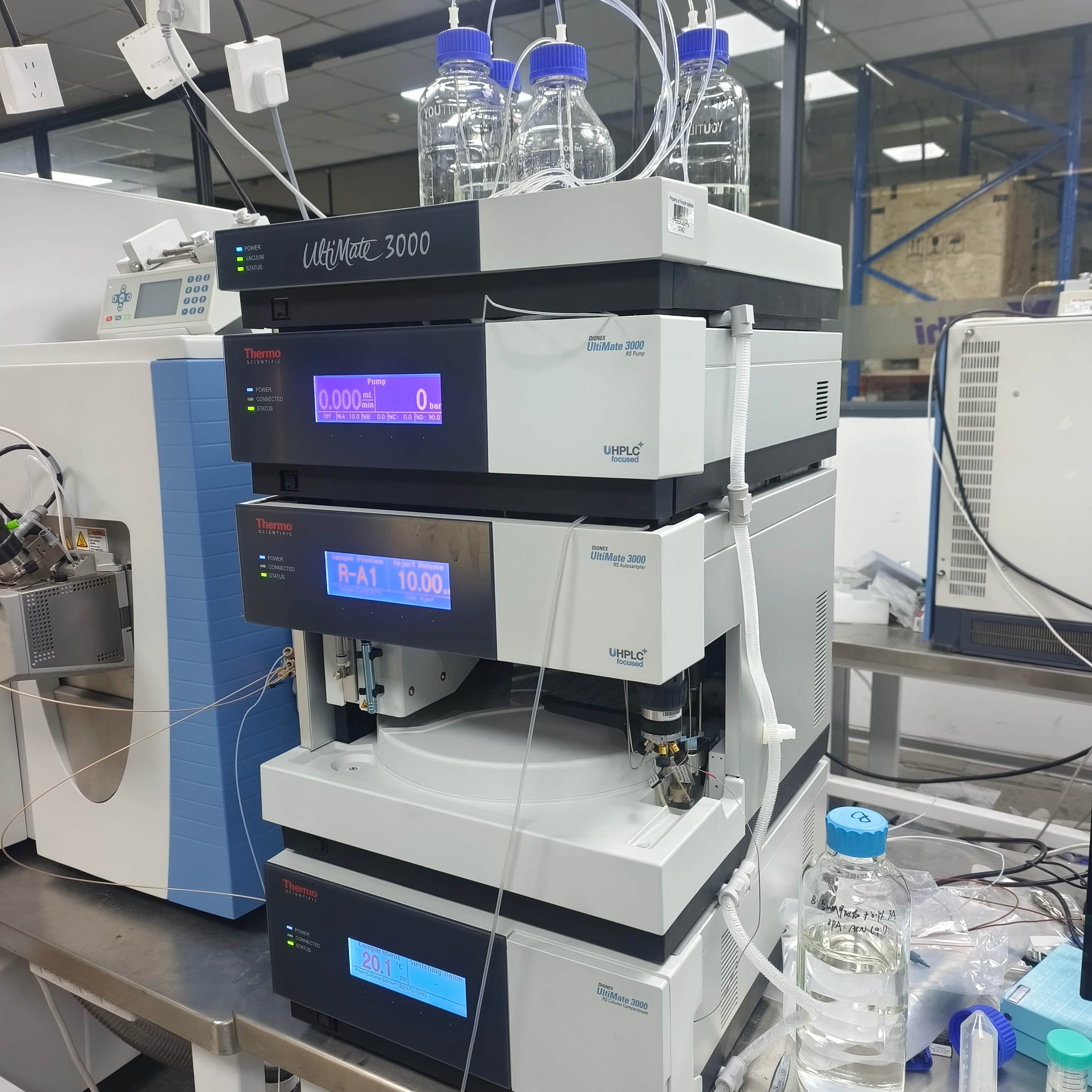

Used UltiMate 3000 HPLC System

The Thermo Scientific Dionex UltiMate 3000 HPLC System is a highly modular and scalable analytical platform designed to span the full performance spectrum from routine high-performance liquid chromatography (HPLC) to ultra-high-performance liquid chromatography (UHPLC). Renowned for its precision, flexibility, and robust data integrity, it is a preferred choice in pharmaceutical quality control (QC), biopharmaceutical characterization, academic research, and environmental monitoring.

System Architecture & Core Specifications

The system’s modular design allows for tailored configurations, including Standard (SD), Rapid Separation (RS), and Basic systems, all unified under a single software ecosystem.

• Solvent Delivery System: The UltiMate 3000 series offers a range of pump technologies to match application demands. The HPG-3400RS binary pump​ is the core of its UHPLC performance, capable of operating at up to 100 MPa (1000 bar, 15,000 psi), enabling the use of sub-2-micron particle columns for high-resolution, high-speed separations. It delivers a flow rate range from 0.0001 to 8.0000 mL/min with high compositional accuracy. For routine analysis, the LPG-3400SD quaternary pump​ provides reliable gradient performance at up to 62 MPa, supporting flexible method development with four solvents.

• Autosampler (WPS-3000 Series): Designed for high throughput and ultra-low carryover, the WPS-3000TRS (thermostatted) and WPS-3000RS autosamplers feature a “needle-in-flow” design where the sample loop and needle remain in the flow path. This innovative fluidics design, combined with an efficient multi-solvent wash system, achieves carryover levels below 0.05%, which is critical for sensitive bioanalytical assays and LC-MS applications. It supports injection volumes from 0.1 µL to over 100 µL and offers sample cooling for thermally labile compounds.

• Column Oven (TCC-3000 Series): The thermally insulated column compartment ensures chromatographic reproducibility. The TCC-3000RS​ model provides precise temperature control from 5°C to 110°C​ (with optional cooling), accommodating both high-temperature LC and the analysis of unstable compounds. It features a micro-volume preheater and forced-air circulation for excellent temperature uniformity (±0.1°C), which is vital for consistent retention times in UHPLC.

• Detection Suite: The system integrates seamlessly with a wide array of detectors. The DAD-3000 (Diode Array Detector)​ offers fast acquisition rates up to 200 Hz, capturing narrow UHPLC peaks with high fidelity. The platform also supports fluorescence (FLD), refractive index (RI), charged aerosol (CAD), and various mass spectrometers, providing comprehensive detection capabilities for diverse analytes.

Key Performance & Operational Advantages

• Viper Connection Technology: A defining feature is the use of Dionex Viper​ fingertight fittings. These zero-dead-volume connections eliminate traditional unions and ferrules, drastically reducing system dispersion and ensuring excellent peak symmetry. This technology is essential for maintaining separation efficiency when scaling methods between HPLC and UHPLC systems.

• Software & Compliance: The system is operated via Thermo Scientific’s Chromeleon Chromatography Data System (CDS), versions 6.x and 7.x. This powerful software provides complete instrument control, data processing, and robust compliance features for GLP/GMP environments, including full audit trails, electronic signatures, and eWorkflow solutions for method transfer and validation.

• Application Versatility: The UltiMate 3000 excels in demanding workflows. In pharmaceutical QC, it is used for assay and impurity profiling. The BioRS​ configuration, with its biocompatible flow path, is specifically engineered for the analysis of proteins, peptides, and oligonucleotides under high-salt or extreme pH conditions, making it indispensable in biopharmaceutical development.

In summary, the Thermo Scientific Dionex UltiMate 3000 HPLC System is a future-proof analytical platform that combines extreme pressure capabilities with intelligent fluidics and software automation. Its modularity, Viper connection technology, and Chromeleon CDS integration make it an indispensable tool for laboratories seeking to maximize throughput, sensitivity, and data integrity across both research and regulated environments.
