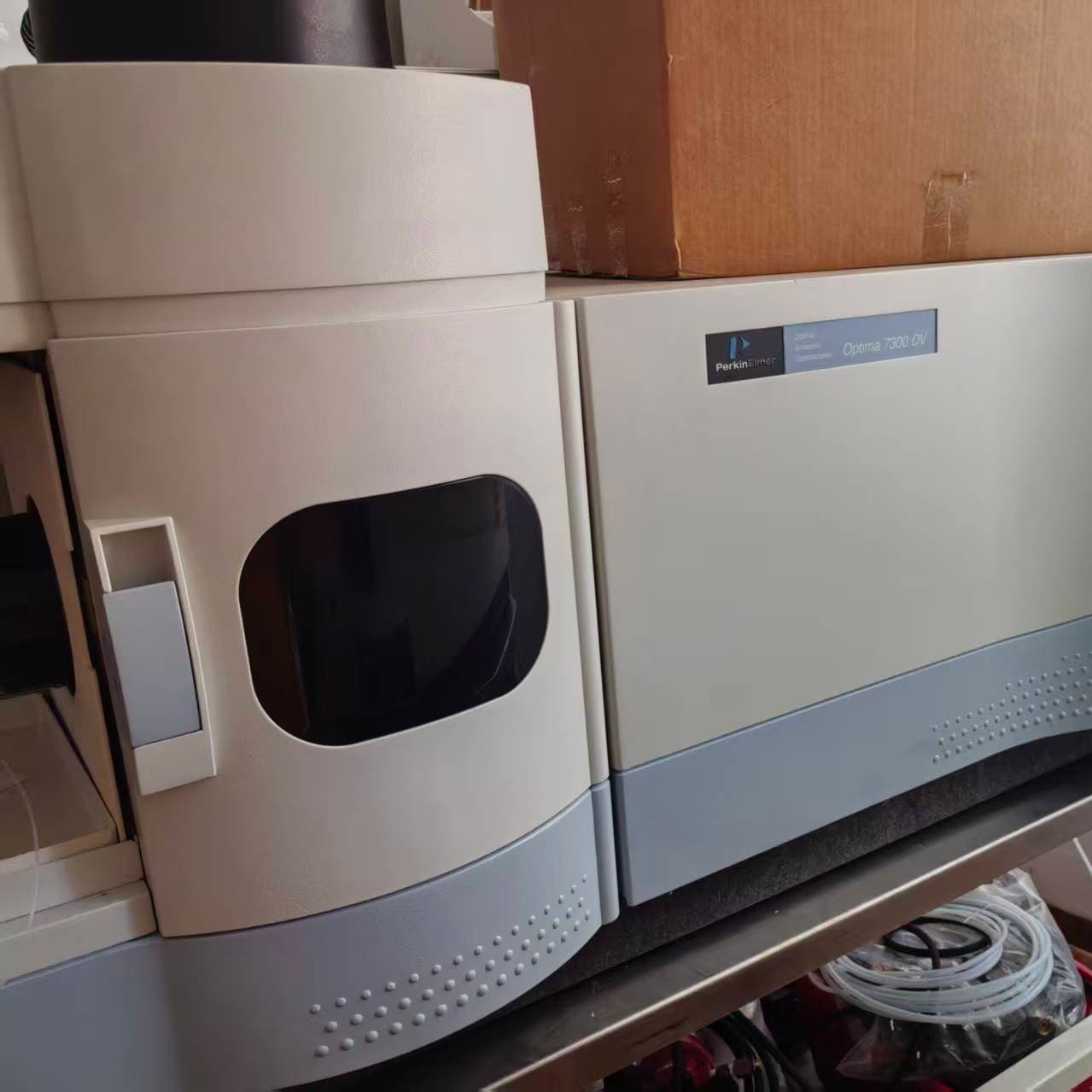

Used PerkinElmer Optima 7300DV ICP-OES Spectrometer

The PerkinElmer Optima 7300DV ICP-OES Spectrometer​ is a high-performance, dual-view inductively coupled plasma optical emission spectrometer designed for high-throughput, multi-element analysis across diverse sample matrices. It combines the sensitivity of axial viewing with the robust matrix tolerance of radial viewing in a single platform, making it a workhorse instrument in environmental, pharmaceutical, and materials testing laboratories.

Instrument Overview and Design Philosophy

The "DV" in the model name stands for Dual View, which is the instrument's defining feature. Unlike traditional systems that force a choice between axial (sensitive) or radial (robust) plasma observation, the 7300DV integrates both capabilities. This allows analysts to simultaneously measure trace elements and major constituents in a single run without hardware reconfiguration. The system is built around a sealed, temperature-stabilized optical system and a solid-state RF generator, ensuring high stability for both routine and challenging applications.

Core Technical Specifications and Components

• Optical System & Detection: The instrument utilizes an echelle grating-based polychromator​ with crossed dispersion, covering a wavelength range of approximately 169–780 nm. It is equipped with a high-resolution solid-state detector (SCD) that enables true simultaneous measurement of multiple elements. The optical bench is purged and thermostatically controlled to minimize drift and maintain resolution better than 0.006 nm at 200 nm.

• Dual View Plasma Interface: The key innovation is the automated switching between axial and radial viewing modes. Axial view provides a long pathlength through the plasma center, delivering superior detection limits (often sub-ppb) for trace elements. Radial view observes the plasma from the side, offering a wider linear dynamic range (up to 10⁶) and better tolerance for high-salt or complex organic matrices.

• RF Generation & Sample Introduction: A free-running 40.68 MHz solid-state RF generator powers the plasma with high efficiency and stability (<0.1% RSD). The sample introduction system typically includes a cross-flow or concentric nebulizer paired with a cyclonic spray chamber. The system supports the analysis of difficult samples, including those containing moderate levels of hydrofluoric acid (HF) or organic solvents when configured with appropriate components.

Performance and Application Workflow

The 7300DV excels in speed and versatility. It can determine over 70 elements in seconds per sample, making it ideal for high-volume testing. The workflow is managed by PerkinElmer's Syngistix™​ software, which provides automated method development, real-time background correction, and comprehensive data management compliant with GLP/GMP regulations. Typical applications include:

• Environmental: Analysis of heavy metals (Cd, Pb, As, Hg) in water and soil.

• Metallurgical/Geochemical: Precise determination of major and minor elements in alloys and ores.

• Pharmaceutical: Impurity profiling and catalyst residue analysis in drug substances.

In summary, the PerkinElmer Optima 7300DV ICP-OES represents a balanced solution that eliminates the traditional compromise between sensitivity and matrix tolerance, offering laboratories a reliable platform for fast, accurate, and cost-effective elemental analysis.
